Automatic Gi and PPGI T Bar Machinery for T Grid System
#TgridGearBox
Tianjin Putai Technology Co., Ltd is a professional Ceiling T-bar rolling line Ceiling T-grid roll former Ceiling T-bar roll forming line Ceiling T-grid roll forming machine's manufacturer in China supplies t grid roll forming machine, steel profile roll forming machines.
Quantity
Automatic Gi and PPGI T Bar Machinery for T Grid System
False Ceiling T Bar Machinery:
| Decoiler | Weight | 150kg |
| Steel coil ID | 450~550mm | |
| Steel coil OD | 1500mm | |
| Roll Forming Machine | Rollers | 14~18 Rows |
| Material: Cr12 | ||
| Inner diameter: 40mm; Outer diameter: 90mm | ||
| Heat treatment hardness:HRC58-62 | ||

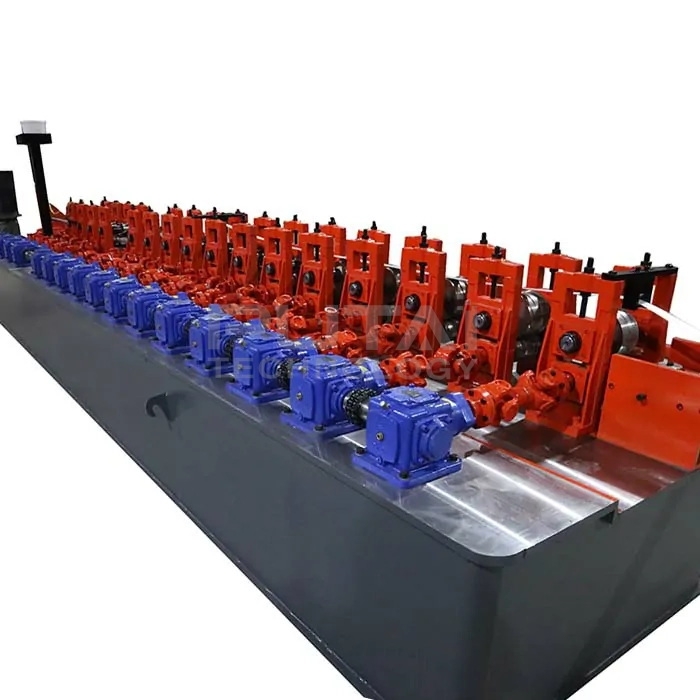

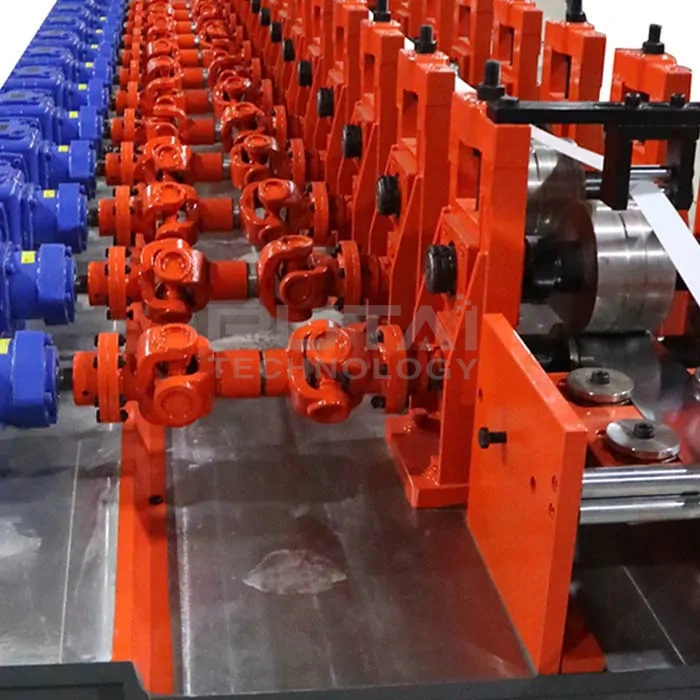

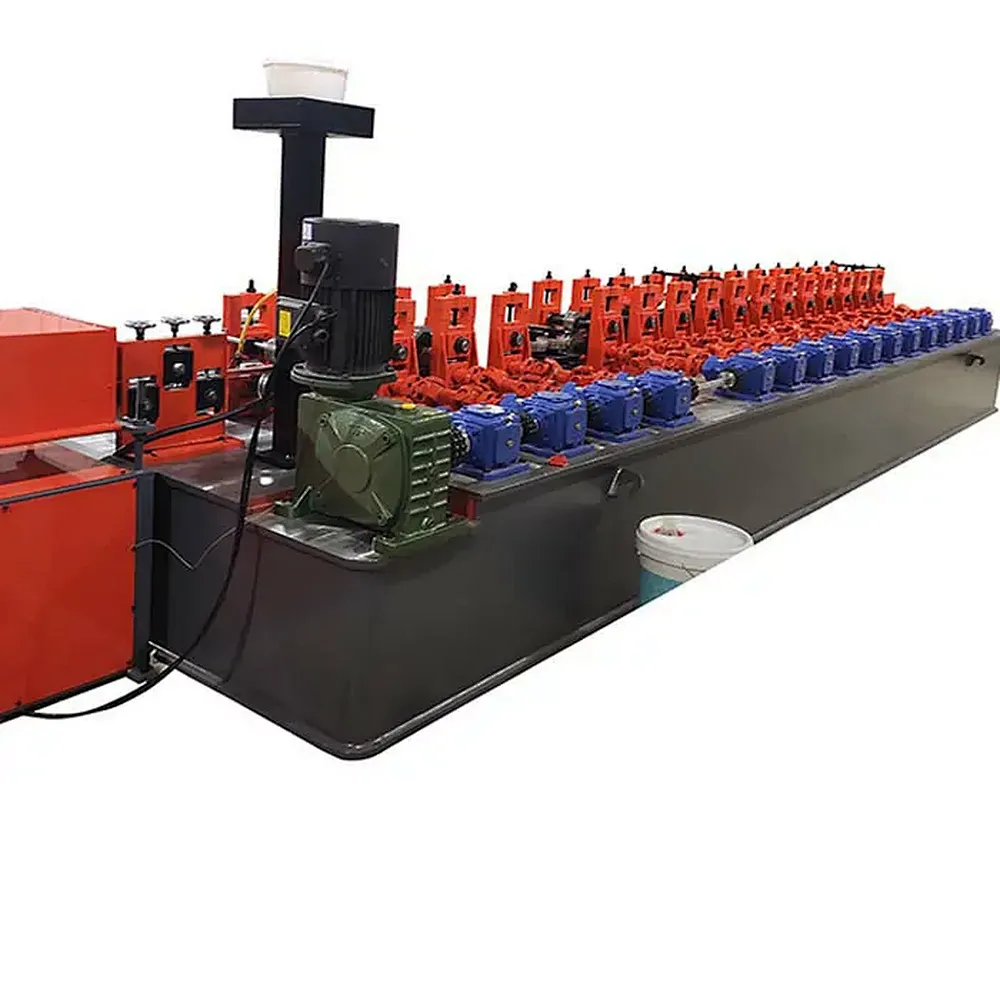

| Transmission | The main drive uses worm gear transmission | |
| Middle Plate | Thickness is 25mm | |
| Hydraulic System | Power | 7.5KW |

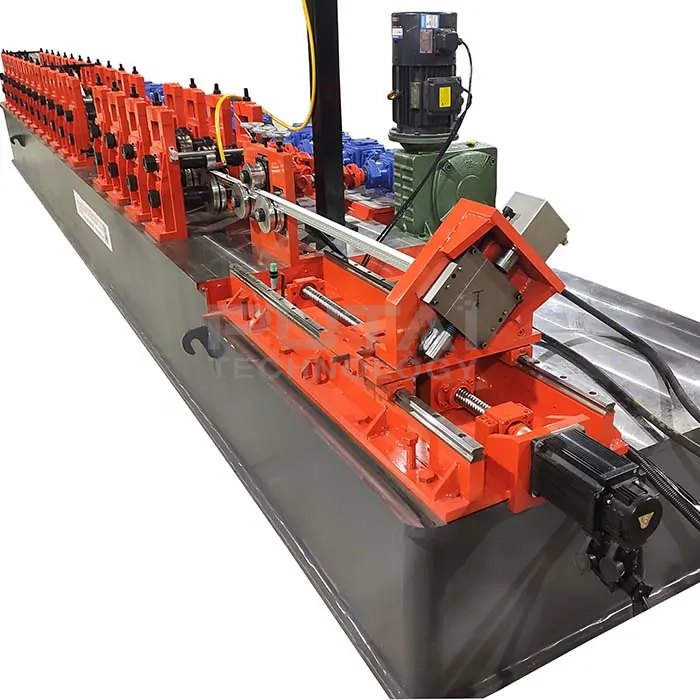

| Cutting System | Servo Tracking System | 2.2KW |
| Punching | Material | SKD11 |
The features of Fully Automatic T Grid Machine Real Factory Stable

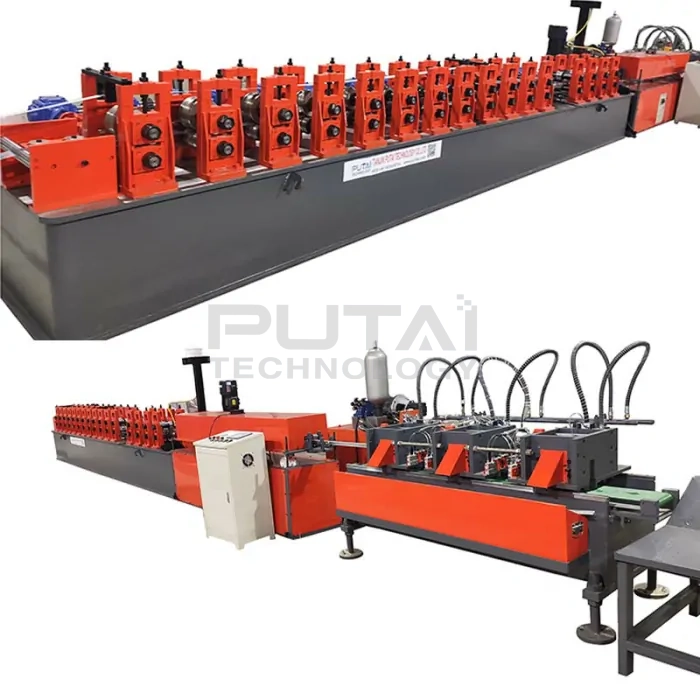

Three T grid machines are included in full line as below:
the main T grid machine
cross TT grid machine
and wall(L)angle roll forming machine
T grid machine is built according to the Client's specifications, because of this, we can make the steel ceiling T-grid machine’s perfect performance and long lifetime.
Meet clients’ diversified requirements
T grid machine with reasonable price, therefore, do not worry anything!
Responsible QC workers check every process, in conclusion, we will try our best to serve our clients.
Lower labour cost, convenient transportation and fully automatic save your money!
We not only develop PLC by ourselves to ensure high accuracy but also make T grid machine’s punching moulds by ourselves factory. So we promise the after-sale service.
In addition to this, It is also easy to operate the T grid machine. Above all, It will be your best choice to choose us!
Cross t grid production line
t grid production line is built according to Clients' specifications, using top brand component
Meeting clients’ diversified requirements on machines.
t grid production line with reasonable price.
Every process will be checked by responsible QC which insures every product’s quality.
Low labour cost, convenient transportation and fully automatic save your money from every part! Self-developed PLC Ensures high accuracy and is easy to operate!
Gi&PPGI T Bar Machinery Application
Ceiling t grid production line's Punching Mold Department
Specification for t grid production line
| Decoiler | Weight | 150kg |
| Steel coil ID | 450~550mm | |
| Steel coil OD | 1500mm | |
| Roll Forming Machine | Rollers | 14~18 Rows |
| Material: Cr12 | ||
| Inner diameter: 40mm; Outer diameter: 90mm | ||
| Heat treatment hardness:HRC58-62 | ||
| Transmission | The main drive uses worm gear transmission | |
| Middle Plate | Thickness is 25mm | |
| Hydraulic System | Power | 7.5KW |
| Cutting System | Servo Tracking System | 2.2KW |
| Punching | Material | SKD11 |
Our t grid production line Suppliers
Shipping Package & Container
