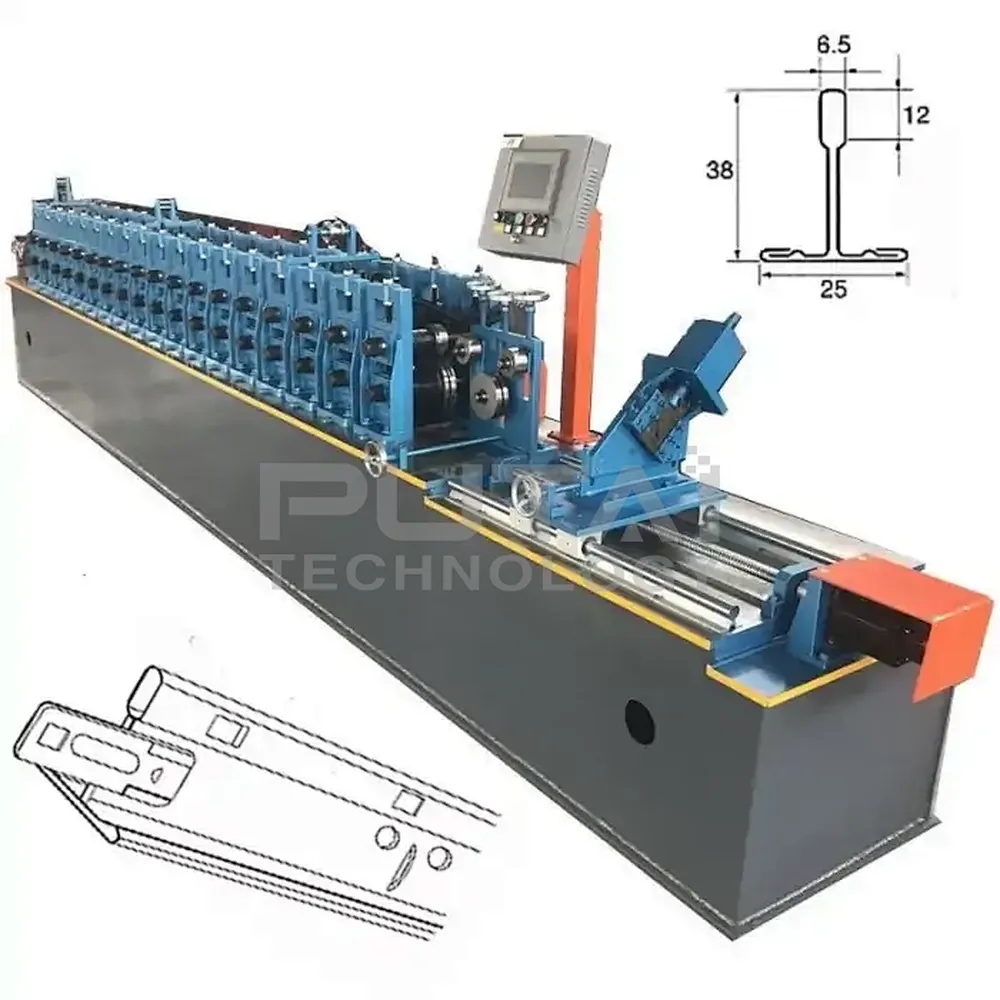

Automatic main T and cross T ceiling T grid roll forming machine for ceiling system
32/24
Ceiling System T Grid Cross Tee Roll Forming Making Machine is used to make ceiling T-bar.The T-bar is a technical profile for supporting suspended ceiling panels (cell grid suspended ceiling).This highly technical system consists of two different profiles which called Main Tee and Cross Tee.A galvanized sheet metal base gives structure and strength to the profile, but all that can be seen once the ceiling is assembled is a pre-painted sheet metal profile. Special machining and hooks or connectors are to be found on the profile body and the ends, which allow the profiles to be fastened to the ceiling and to each other.These materials are widely used in the buildings now,such as office building and schools, etc.
Quantity
automatic main T and cross T ceiling T grid roll forming machine for ceiling system
Our supplier:
| 1 | Machine name | automatic main T and cross T ceiling T grid roll forming machine for ceiling system |
| 2 | Dimension | 10000*1000*1500mm |
| 3 | Weight | 8T |
| 4 | Total power | 11KW |
| 6 | Voltage | 380V/50HZ/3PH |
| 7 | Material | GI,GL |
| 8 | Forming speed | 25m/min |
| 9 | Material thickness | 0.2-0.6mm |
| 10 | Tolerance | ±1mm |
