Automatic stud and track profile roll forming machine

Model NO. #stud&track

Tianjin Putai Technology Co., Ltd is a professional cold roll forming machinery manufacturer, leading in the market with more than 15 years of experience. The Automatic stud and track profile roll forming machine, also known as steel drywall framing machine, steel ceiling framing machine, false ceiling steel structure stud and track profile forming machine, c-shape channel roll forming machine, and gypsum metal framing forming machine is equipped with the best spare components available in the market.

Quantity

What are Stud and Track steel profiles?

In wall framing made of steel, track is normally horizontal (level) and stud is generally vertical (plumb). The track is anchored to the floor and to the ceiling. The studs fit inside the tracks. Tracks are smooth. Studs are frequently made with embossed sides to increase strength. Studs can be made with holes in the web to pass pipes, conduits, or Romex.

steel drywall framing machine
The Automatic stud and track profile roll forming machine also known as gypsum metal framing forming machine steel drywall, framing machine, steel ceiling framing machine, false ceiling steel structure, stud and track profile forming machine, c-shape channel roll forming machine is one of our best-selling products due to its performance and productivity.

Product Description

steel drywall framing machine technical parameters
Rollers			Stand: 12 Rows Roller’s shaft diameter:50mm Roller adjustment range:20mm, up10mm, down 10mm Roller material: Cr12
Shaft			50mm, the upper shaft’s length is 430mm and the lower shaft’s length is 500mm
Steel structure			35mm steel wall plate welded frame, 25mm thickness for desk plate
Total motor power			16.8kw
Main motor power			7.5kw (K77 series 7.5KW)

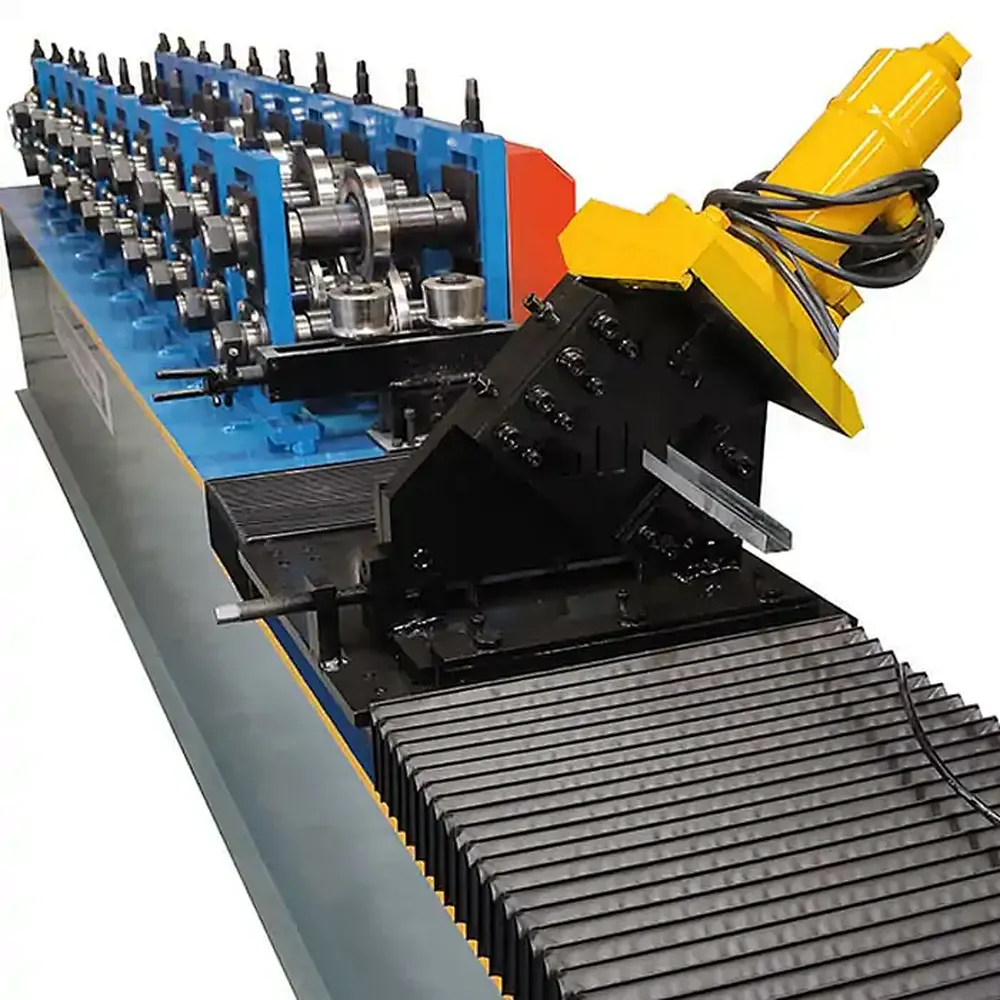

cutting system			Cutting blade material: Cr12,heat treatment HRC58-60
Cut-off type			servo tracking cutting
Length tolerance			+/-2mm
PLC			Delta PLC (Taiwan Brand)
Encoder			Omron brand
Raw material thickness			0.3~0.6mm
Productivity			0-30m/min
Voltage			380v50hz3p(or as your requirement)
Drive type			Gear transmission drive, K77 series motor reducer integrated
Gear			Outer diameter Ф168, thickness 35, 24 teeth, modulus 6 (material 40Cr)
Material			galvanized steel sheet, aluminum sheet

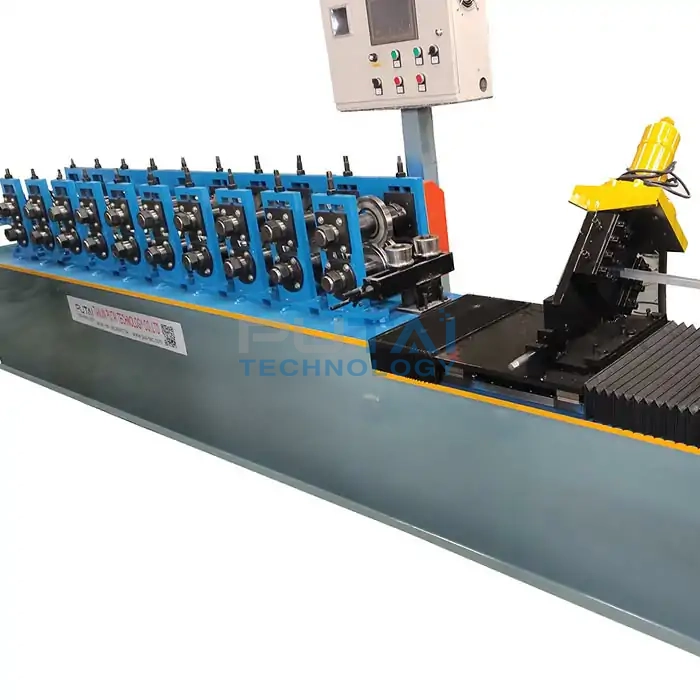

Automatic stud and track profile roll forming machine

Machine introduction
1. the main parts:
1) roll forming machine
2)molding press
3)cutting machine
4)PLC computer control
5)hydraulic system.
2. The machine is stable, with no noise, no shake.
3. Controlling by computer, PLC display, operation is easy, running is steady and reliable, endurable
4. cutting machine is characterized by stable driving, and easy operation.
5. hydraulic system uses a hydraulic pump, long operating life, no noise.
6. material: galvanized, colored steel or aluminum coil
7. We can make and design the kinds of roll forming machine according to customer's request
