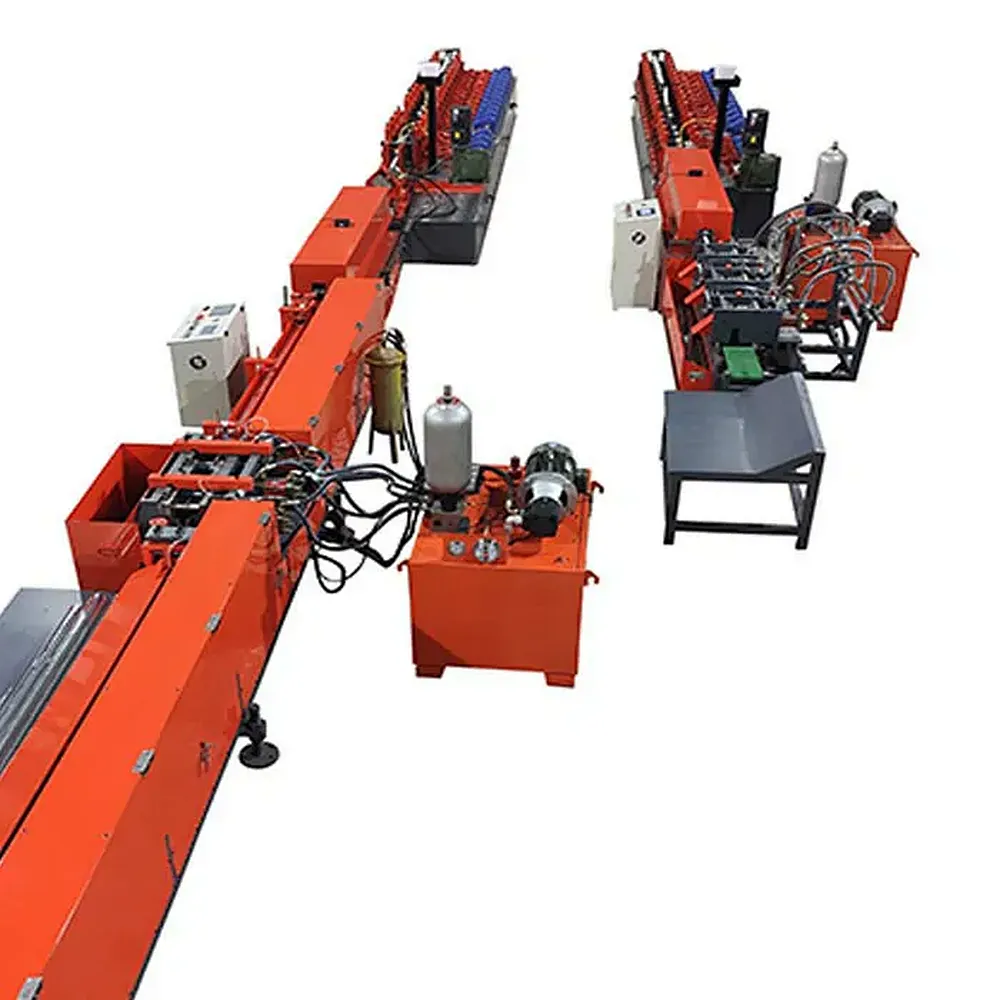

Center Black Main Tee Grid Ceiling Profile roll forming machine
#centerBlackTeeGrid
Tianjin Putai Technology Co., Ltd is a professional Center Black Line T grid machine, T Grid 24mm Center Black forming machine, Ceiling T Grid Production Line, Suspension T grid system forming machine manufacturer in China supplies t grid roll forming machine, steel profile roll forming machines.
Quantity
Center Black Main Tee Grid Ceiling Profile roll forming machine
T Grid 24mm Center Black forming machine:
| Decoiler | Weight | 150kg |
| Steel coil ID | 450~550mm | |
| Steel coil OD | 1500mm | |
| Roll Forming Machine | Rollers | 14~18 Rows |
| Material: Cr12 | ||
| Inner diameter: 40mm; Outer diameter: 90mm | ||
| Heat treatment hardness: HRC58-62 | ||
| Transmission | The main drive uses worm gear transmission | |
| Middle Plate | Thickness is 25mm | |
| Hydraulic System | Power | 7.5KW |
| Cutting System | Servo Tracking System | 2.2KW |
| Punching | Material | SKD11 |
The features of Ceiling T Grid Production Line
Three T grid machines are included in full line as below:
the main T grid machine
cross T grid machine
and wall(L)angle roll forming machine
T grid machine is built according to the Client's specifications, because of this, we can make the steel ceiling T-grid machine’s perfect performance and long lifetime.
Meet clients’ diversified requirements
T grid machine with reasonable price, therefore, do not worry anything!
Responsible QC workers check every process, in conclusion, we will try our best to serve our clients.
Lower labor cost, convenient transportation, and fully automatic save your money!
We not only develop PLC by ourselves to ensure high accuracy but also make T grid machine’s punching molds by ourselves factory. So we promise the after-sale service.
In addition to this, It is also easy to operate the T grid machine. Above all, It will be your best choice to choose us!
Cross t grid production line
t grid production line is built according to Clients' specifications, using top brand component
Meeting clients’ diversified requirements on machines.
t grid production line with reasonable price.
Every process will be checked by responsible QC which insures every product’s quality.
Low labor cost, convenient transportation, and fully automatic save your money from every part! Self-developed PLC Ensures high accuracy and is easy to operate!
Ceiling t grid production line's Punching Mold Department
Specification for t grid production line
| Decoiler | Weight | 150kg |
| Steel coil ID | 450~550mm | |
| Steel coil OD | 1500mm | |
| Roll Forming Machine | Rollers | 14~18 Rows |
| Material: Cr12 | ||
| Inner diameter: 40mm; Outer diameter: 90mm | ||
| Heat treatment hardness:HRC58-62 | ||
| Transmission | The main drive uses worm gear transmission | |
| Middle Plate | Thickness is 25mm | |
| Hydraulic System | Power | 7.5KW |
| Cutting System | Servo Tracking System | 2.2KW |
| Punching | Material | SKD11 |
Our t grid production line Suppliers
Shipping Package & Container
