drywall roll forming machine
CU Channel for drywall and ceiling profile forming machine
#cuChannel

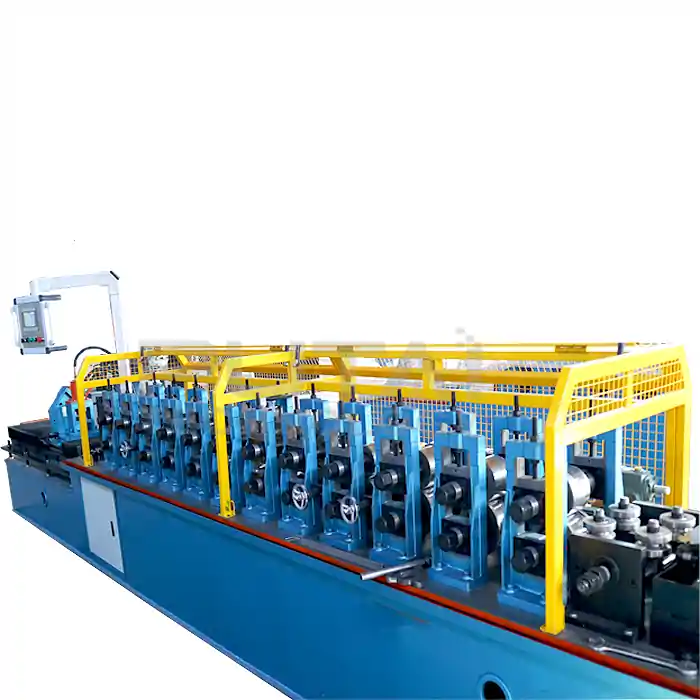

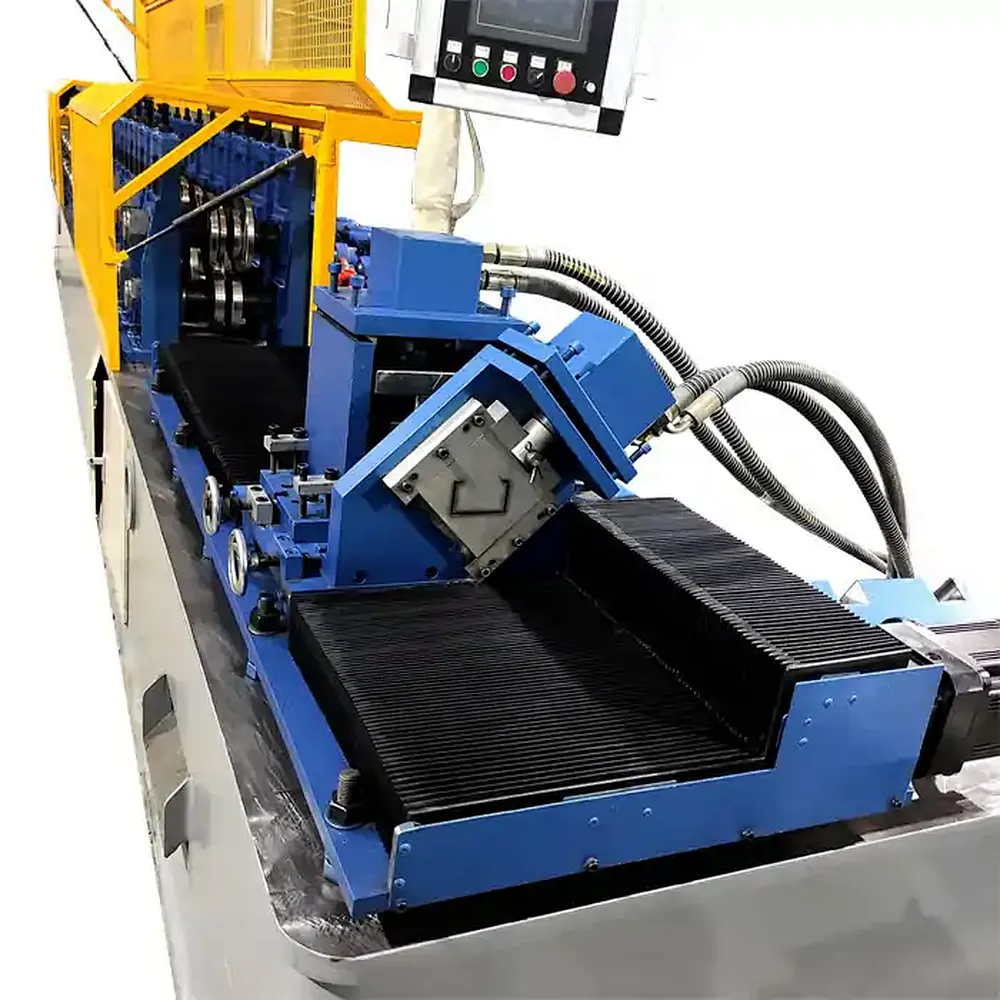

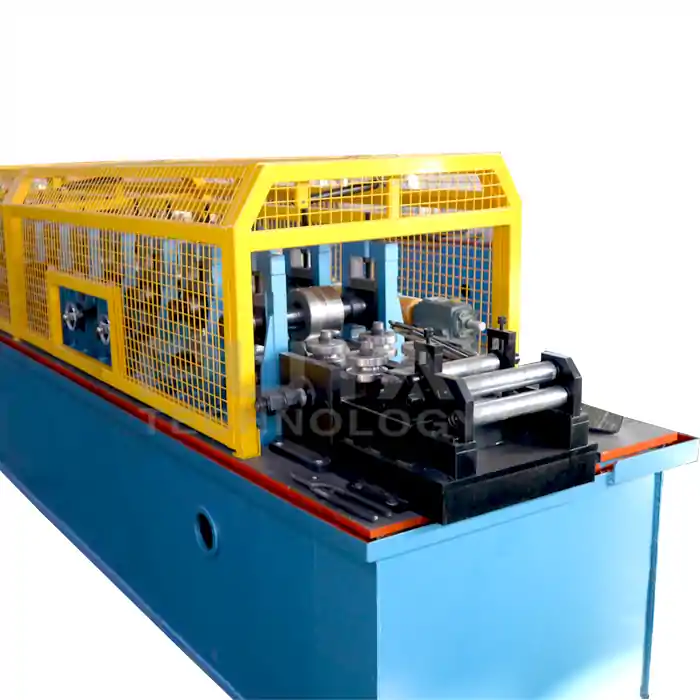

Drywall C U Channel Machine Metal Stud Roll Forming Machine
Drywall frame C U Channel Machinery for drywall frame sections, T grid ceiling structure, equipment for lightweight CU profile CU channel system for ceiling and drywall installation. Cheaper machinery and high-efficiency production solution.
Customized drywall frame C channel steel stud
Quantity
Machine Details/Specifications
 Machine name  CU Channel Stud and Track profiles Forming Machine
 DecoilerMax Capacity: 5000kgs; Coil Inner diameter: 400-600mm; Automatic and Manual Control (with brake)
 Leveling device Using a level to ensure the material's level and straightness with adjustable width
 Main forming System  Width, Height, and thickness: According to the profile drawing. Material: GI sheet coil or PPGI.
 Motor power5.5 kw forming system
Roller MaterialCr12
Roller SurfaceHeat treatment HRC 58-60
Main shaft diameter60 mm  #45 steel, heat treatment modulation
Forming station12 stations(May vary depending on the client's requirements)
Transmission typeChain and Gear transmission
Electrical systemControl system: HMI & PLC control panel; Power 380v 50hz (as per local requirement)
Run-out-tableFrame:A3; Qantity: 1pc
About 1.5 tons
1). Tighten to container with steel wire rope and welded the machine with the container with angel iron

2). Main forming machine and un-coiler is naked (If you need we can also pack with water-proof plastic)

3)Motor pumps are packed in a box with waterproof paper coverage

4) Transported By 20 feet container or 40 feet container
