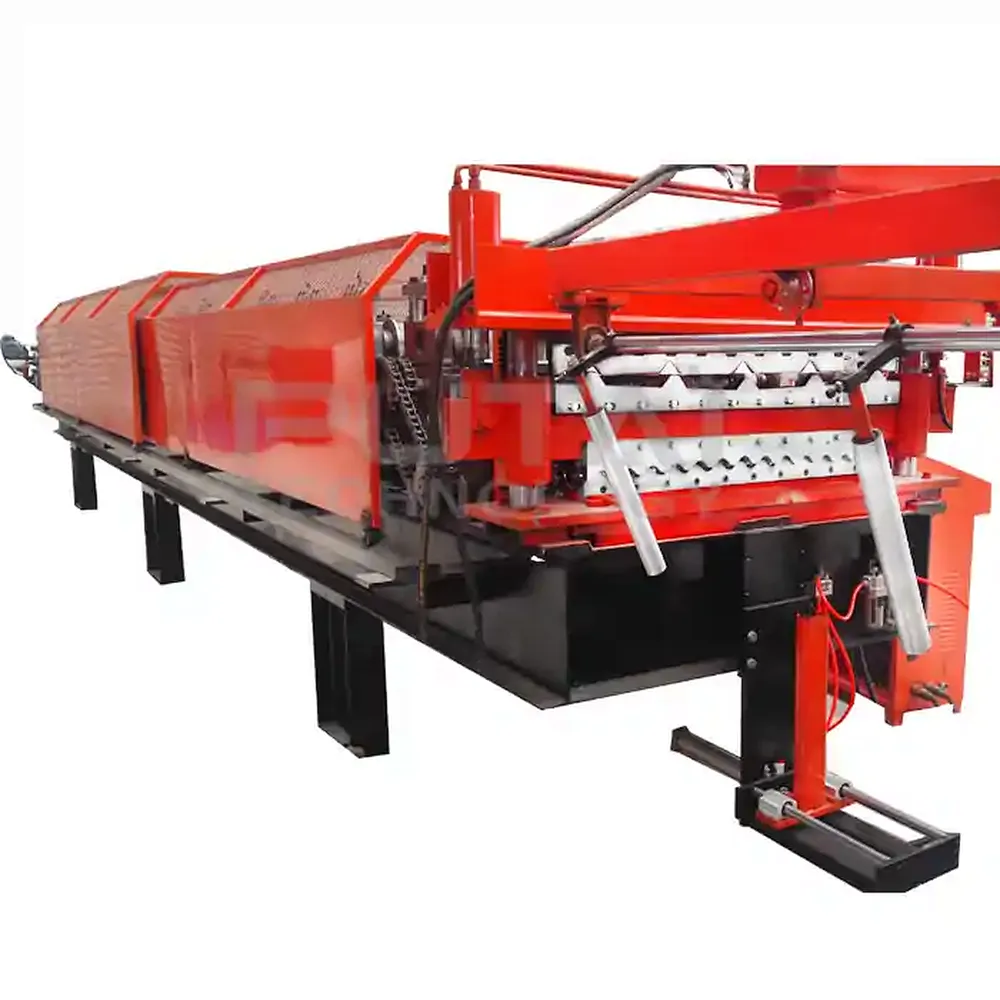

forming machine for roofing steel panel
Forming Machine price Roofing sheet panel forming machine
roofing#
We are a leading Manufacturer of corrugated roofing sheet forming machines, metal roofing sheet forming machines, color coated steel roofing sheet forming machines, roofing sheet forming machines, and corrugated sheet making machines.
Quantity

Product Information
Machine Description / Device Configuration
Item
Q'ty
Manual Decoiler
1 Set
Guiding Device
1 Set

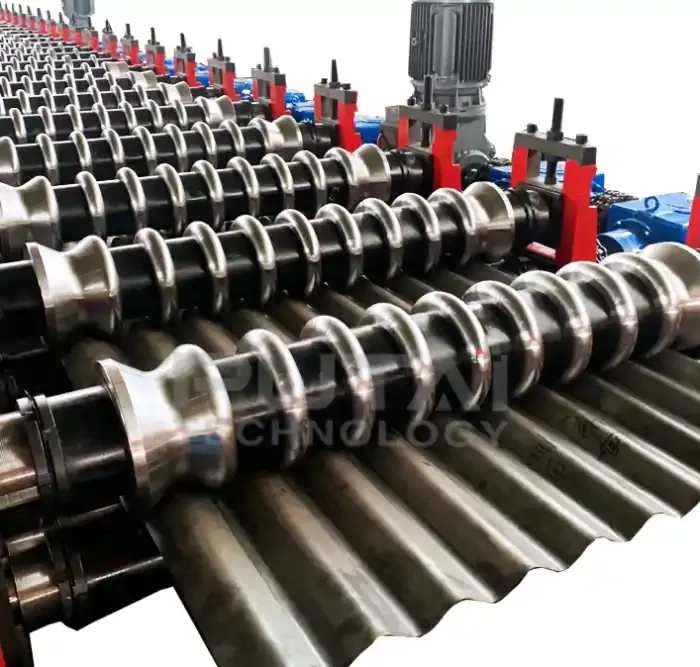

Main Roll forming Machine
1 Set
Hydraulic Cutting Device
1 Set
PLC electric control system
1 Set
Output Table
1 Set
Technical Parameters
Roller stations
18 rows (or according to client's requirement)
Shaft Diameter
70mm（or as client requirement)
Middle Plate
16mm with Hanging plate Material
Hydraulic drive (Station)
5.5kw
Press and Cutting System
Guide Pillar system;
Cutting blade material: Cr12, heat teatment HRC58-60
Cutt-off Type
Hydraulic guide Pillar Cutting
Length Tolerance
+/- 2mm
PLC
Delta Inverter, DELTA PLC
Raw Material Thickness
0.16~0.5mm, G300~G550
Productivity
20-25m/min
Voltage
380v 50hz 3p
Raw Material Width
1219mm
Material
Colored steel sheet, Galvanized steel sheet, aluminium steel sheet
Chain
1.25 inch
Steel structure
350# H steel
