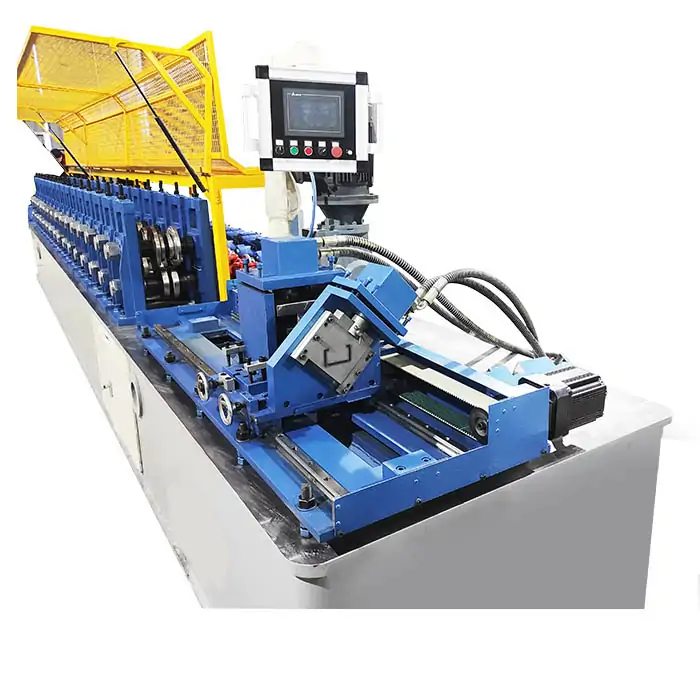

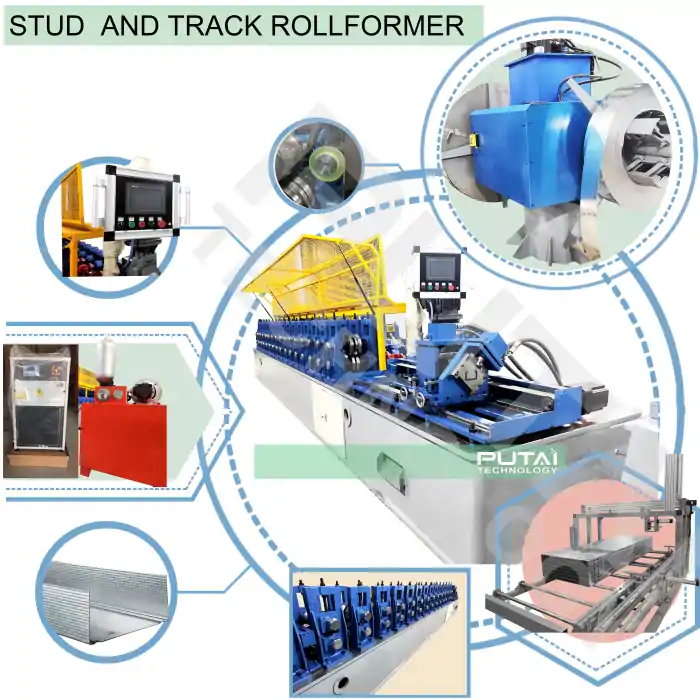

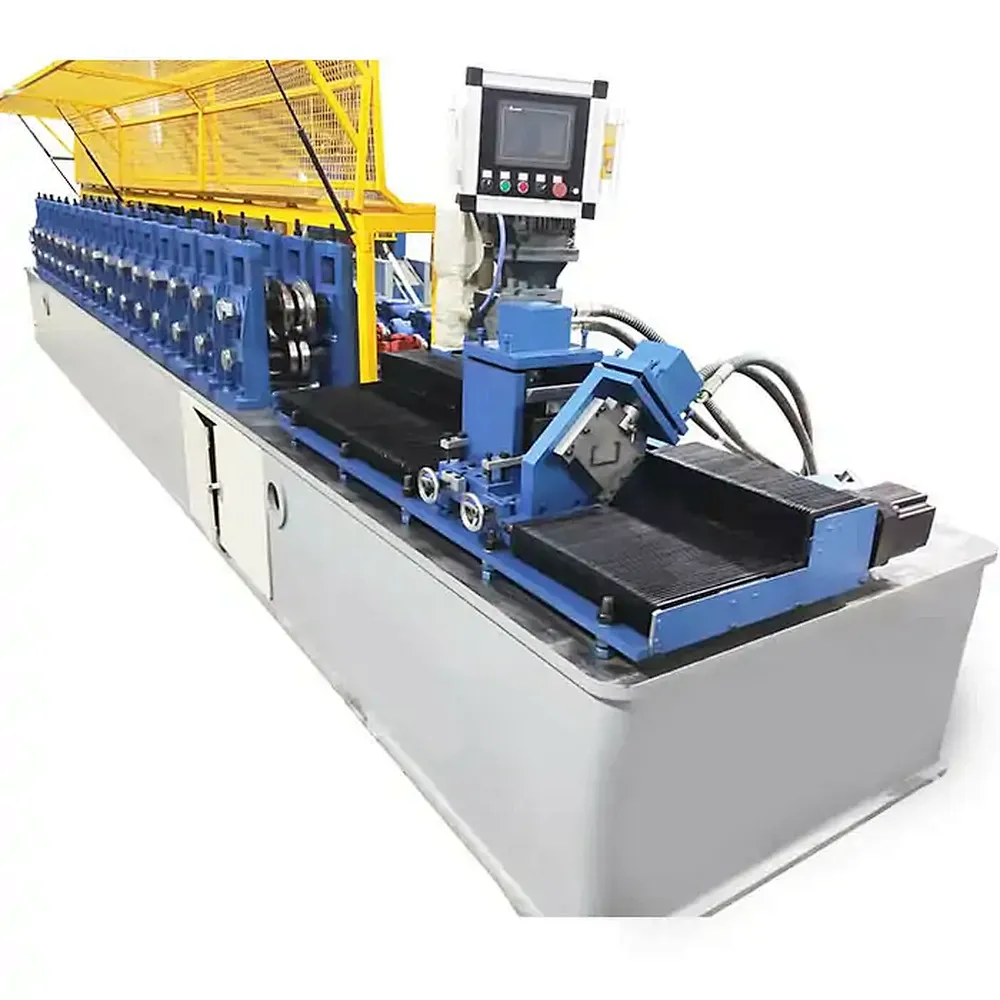

High-speed CU channel/stud/track roll forming machine ceiling CU forming machine

Machine  name	High-speed CU channel/stud/track roll forming machine ceiling CU forming machine
Main motor power	7.5kw
Hydraulic motor power	5.5kw
Voltage	380v 50hz 3phrase
Control system	PLC
Feeding thickness	0.3-0.6mm(high-speed CU channel)
Speed	95m/min
Roller station	16stations
Shaft diameter	75mm
Shaft material	45# solid shaft
Roller material	45# steel chrome treatment
Cutter material	Cr12 Mov
Structure	Pillar
Transmission	Gearbox

Our company adopts universal shaft gearbox for transmission of High-speed CU channel/stud/track roll forming machine ceiling CU forming machine,
which makes the operation of the machine more stable,
with low transmission failure and long service life. High-speed production can be performed as usual. Generally,
high-speed forming machines need to be equipped with high-speed automatic strapping and baling machines developed by our company.
Because high-speed machines are running into production, it is very inefficient to rely on manual packaging.
In order to achieve high-efficiency production, it is recommended to use a high-speed automatic trapping baler, which saves time and improves efficiency for the factory.






If you need to know more functions and price plans about the our high-speed CU channel /stud/track roll forming machine ceiling CU forming machine,
please contact our international trade department,
we will answer you as soon as possible,thank you !
