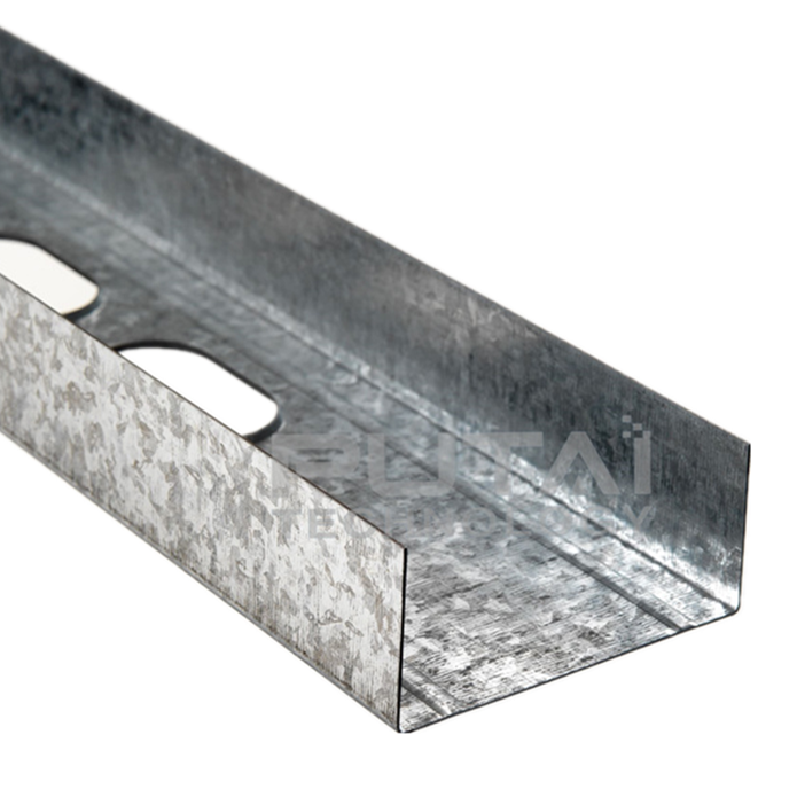

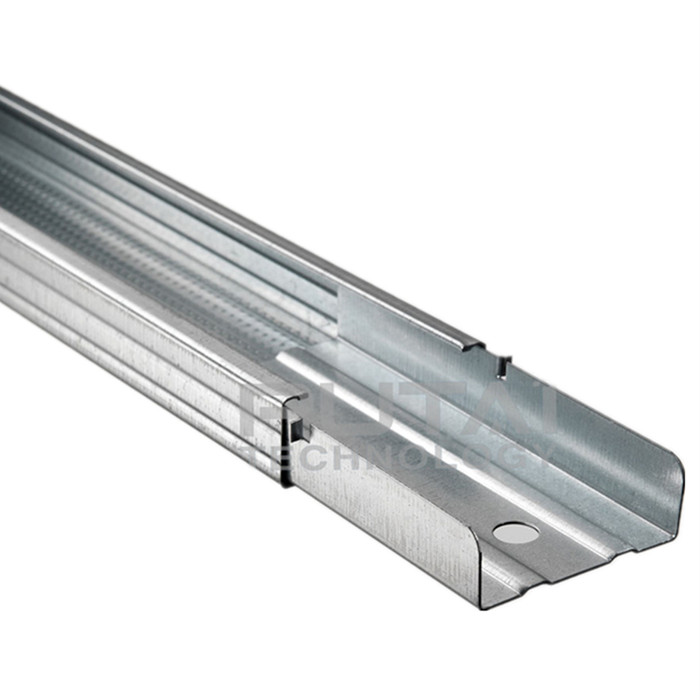

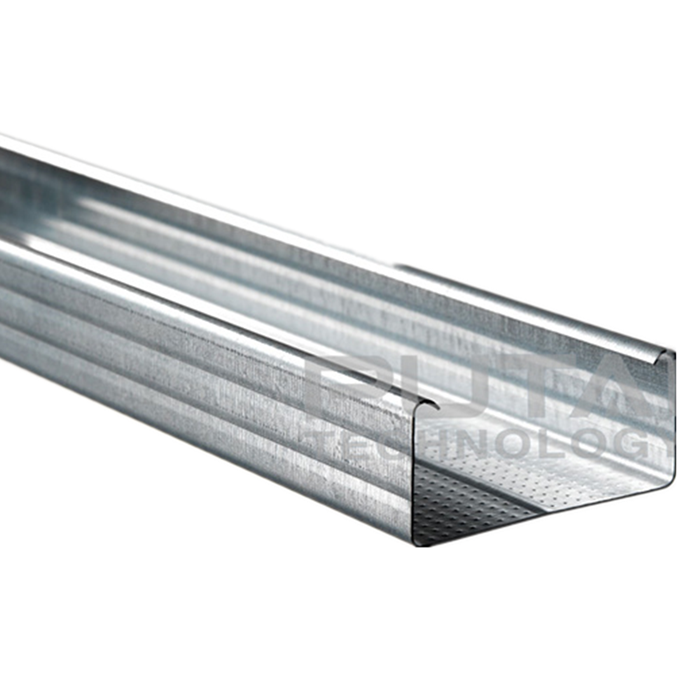

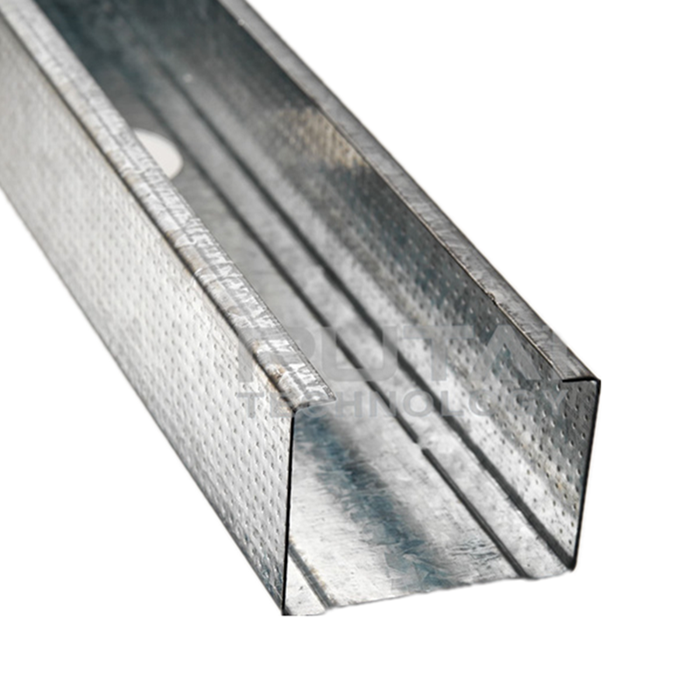

Light gauge steel frame gypframe stud and track profile runner and stud making machine
#stud&track
Light gauge metal framing used for interior wall partitions comes in various shapes, thicknesses, sizes, and finishes. Each of these components has a specific function in the wall assembly. Selecting the right machine to produce your profile will affect positively your organization afterwards. Our Machine are built with the best component existent in the market, they are customizable and we provide the best after-sales service
Quantity

The correct size and thickness of the profile will depend primarily on the profile drawing which will consequently affect the machine assembly. Other considerations in the machine production process include the machine speed, the coil sheet material quality and the end-result product applications.



PROFILES

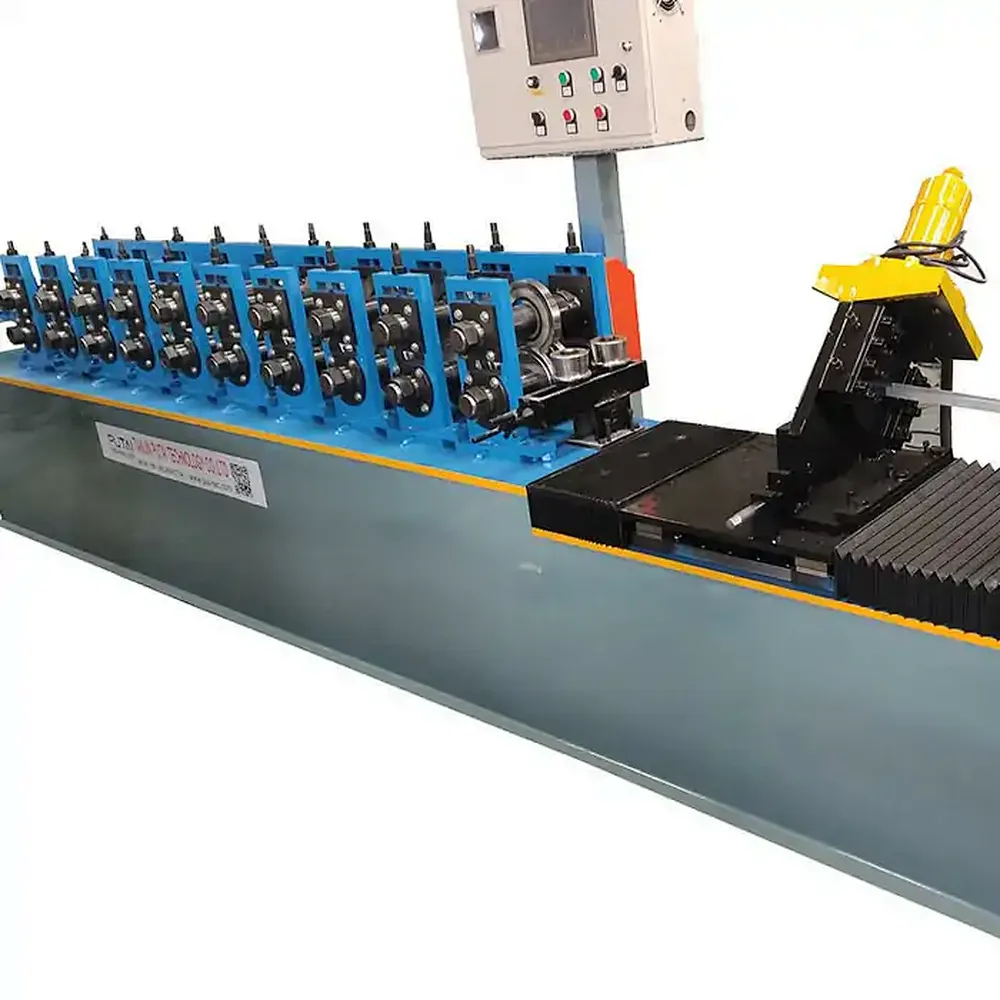

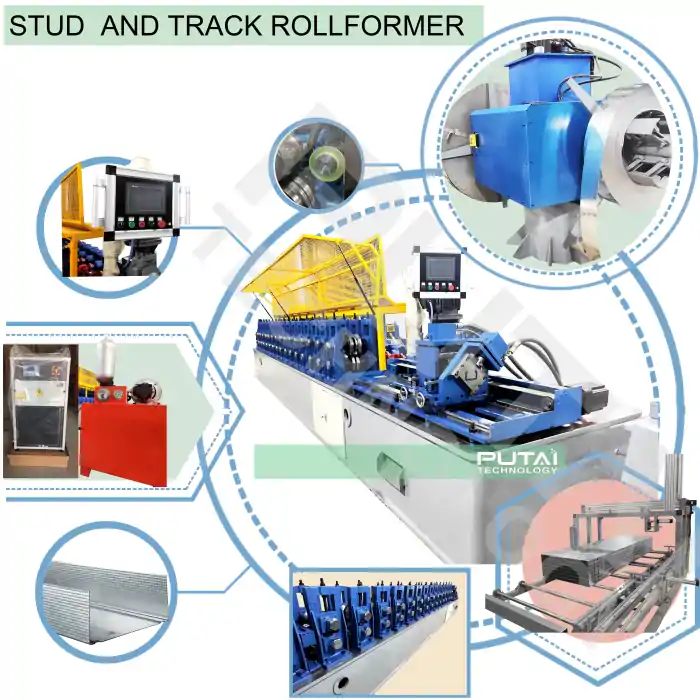

Technical Parameters

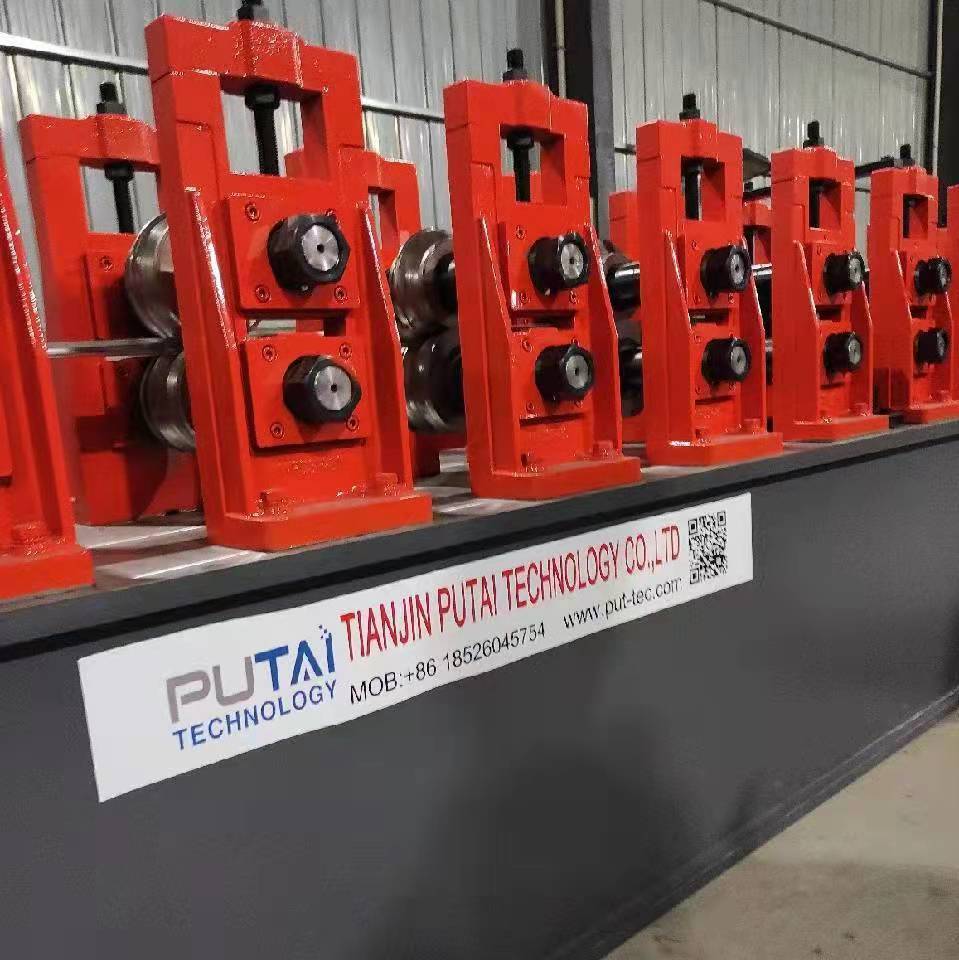

Rollers
Stand: 12 Rows
Roller’s shaft diameter:50mm
Roller adjustment range:20mm, up10mm, down 10mm
Roller material: Cr12
Shaft
50mm, the upper shaft’s length is 430mm and the lower shaft’s length is 500mm
Steel structure
35mm steel wall plate welded frame, 25mm thickness for desk plate
Total motor power
16.8kw
Main motor power
7.5kw (K77 series 7.5KW)
cutting system
Cutting blade material: Cr12,heat treatment HRC58-60
Cut-off type
servo tracking cutting
Length tolerance
+/-2mm
PLC
Delta PLC (Taiwan Brand)
Encoder
Omron brand
Raw material thickness
0.3~0.6mm
Productivity
0-30m/min
Voltage
380v50hz3p(or as your requirement)
 Drive type
Gear transmission drive, K77 series motor reducer integrated
Gear
Outer diameter Ф168, thickness 35, 24 teeth, modulus 6 (material 40Cr)
Material
galvanized steel sheet, aluminum sheet
