Metal Steel Omega Profile Drywall Profile Roll Forming Machine

Suspened omega profile light gauge steel forming machine

Decoiler	Weight	150kg
	Steel coil ID	450~550mm
	Steel coil OD	1500mm
Roll Forming Machine	Rollers	10-12 Rows
		Material: Cr12
		Inner diameter: 40mm; Outer diameter: 90mm
		Heat treatment hardness:HRC58-62
	Transmission	The main drive uses worm gear transmission
	Middle Plate	Thickness is 25mm

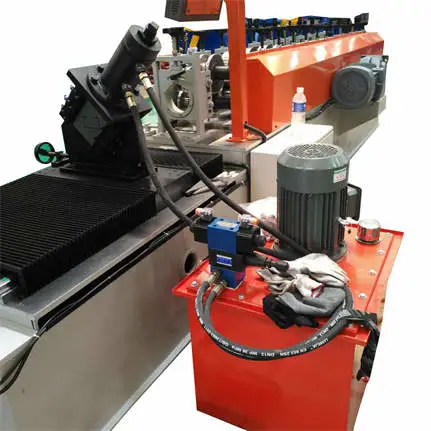

Hydraulic System	Power	7.5KW
Cutting System	Servo Tracking System	1.5KW
cutting Mould	Material	Cr12

steel omega light keel roll former /light truss making machine metal rolling machines

1) The products produced by these series Machine Making Profiles is used for light steel keel in building.
These products will be used for hold ceiling and wall panel.
2) It is with the advantage of lower cost, soon fixture. This series products are common used in different ranges.
3) The width and height are adjustable.

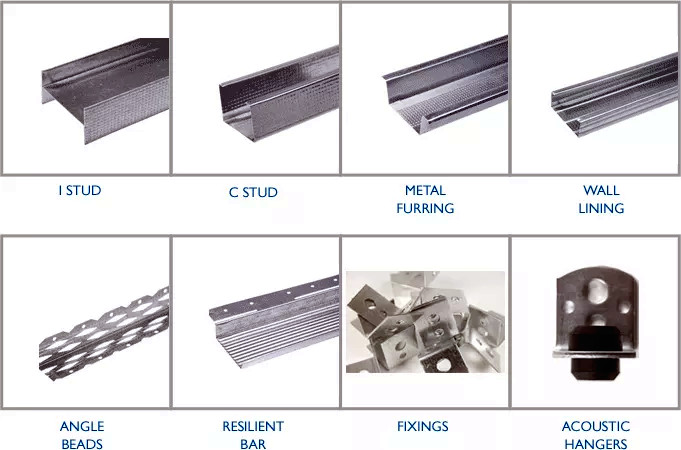

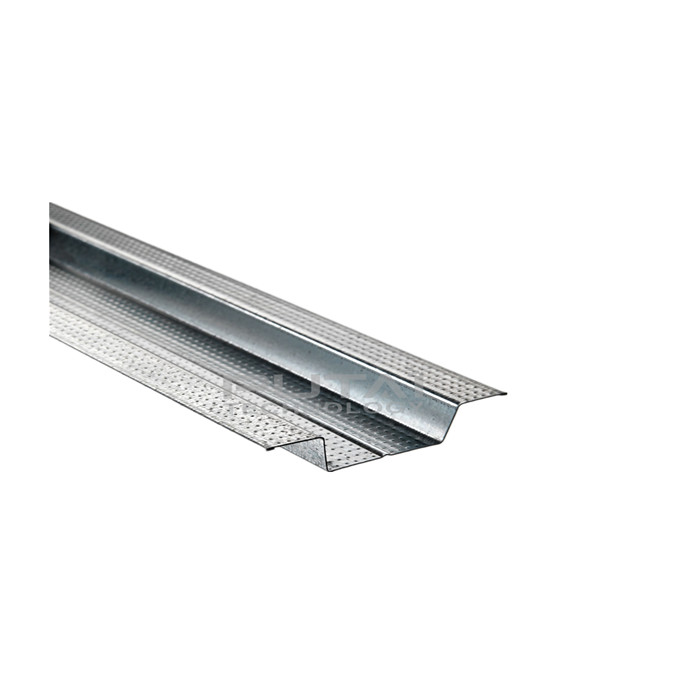

4)Different models for optional:  Omega shape,U shape track,C shape stud,V shape keel or W shape keel

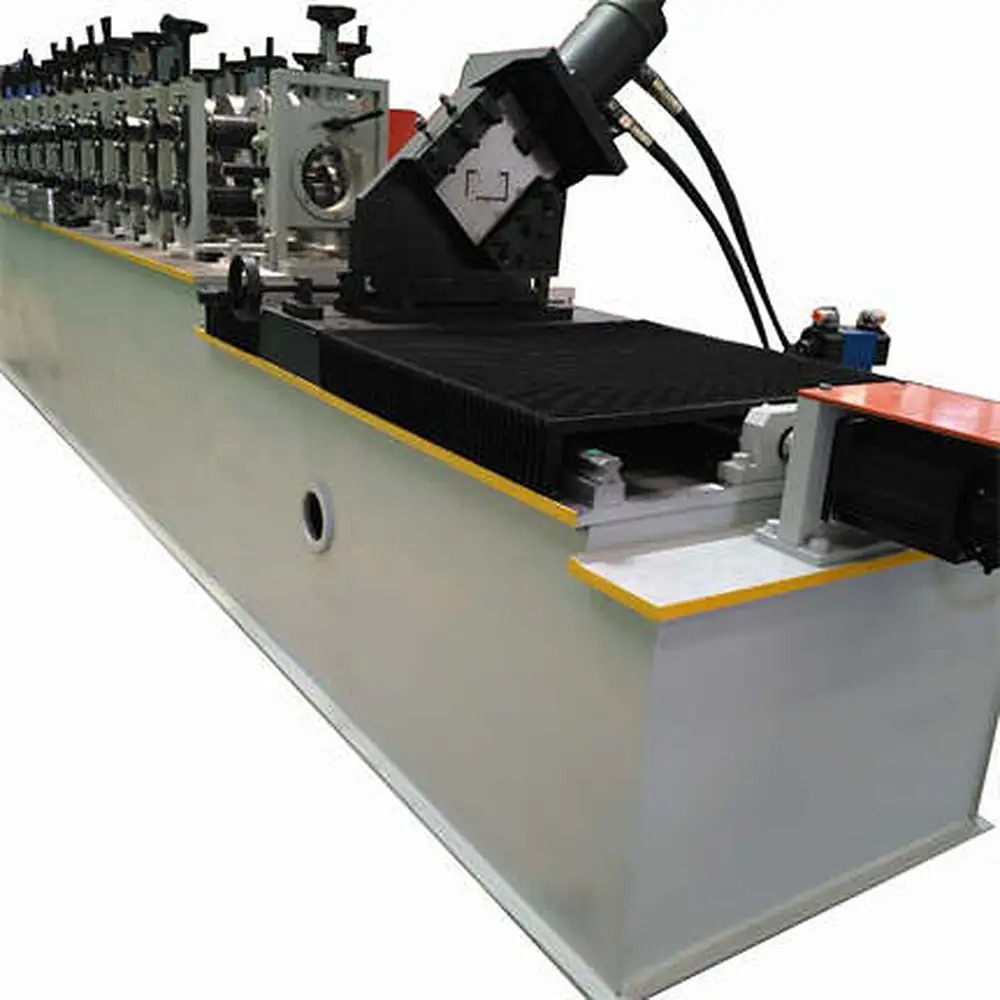

Some details of omega profile roll former

What is the Advantages of our  omega shape steel roll forming machine?
1.PLC Control
You can add in-Line Printing, and PC-Controller Software allowing you to lable components and control your double line light gauge keel stud track steel omega forming machines from your computer. Each option may be included with your machine or added later as your needs evolve
2.Holes (embossing, logo punching)
All double line light gauge keel stud track steel omega forming machines can be set-up with a Service Hole, Dimple Punch, Index/Bolt Hole and Web-notch tools.
3.High speed
Servo driven punch provides close tolerance accuracy and none stop punching for increased production, with interchangeable tooling for different hole sizes and shapes.
