Omega profile false ceiling steel structure light gauge steel
#OmegaChannel
Tianjin Putai Technology (Chenglang Equipment) is a Professional Cold roll forming machine manufacturer specializing in light steel profile roll forming machinery, T bar roll forming Machinery, Cold-Bend Forming equipment, and C U channel baler.
Our factory owns the core technology of our Machinery. We combine the Mold designing and researching and Electric PLC Automation and offer the service separately to most profile forming factories.
Our factory owns the core technology of our Machinery. We combine the Mold designing and researching and Electric PLC Automation and offer the service separately to most profile forming factories.
Quantity
What is the use of furring channels?
Furring is a technique used to level out walls and ceilings with furring channels. A hat channel is a hat-shaped aluminum channel used to fur out a wall, masonry wall, or ceiling to provide a corrosion-resistant framing component. Using a high-speed hat channel forming machine you can easily produce these channels.

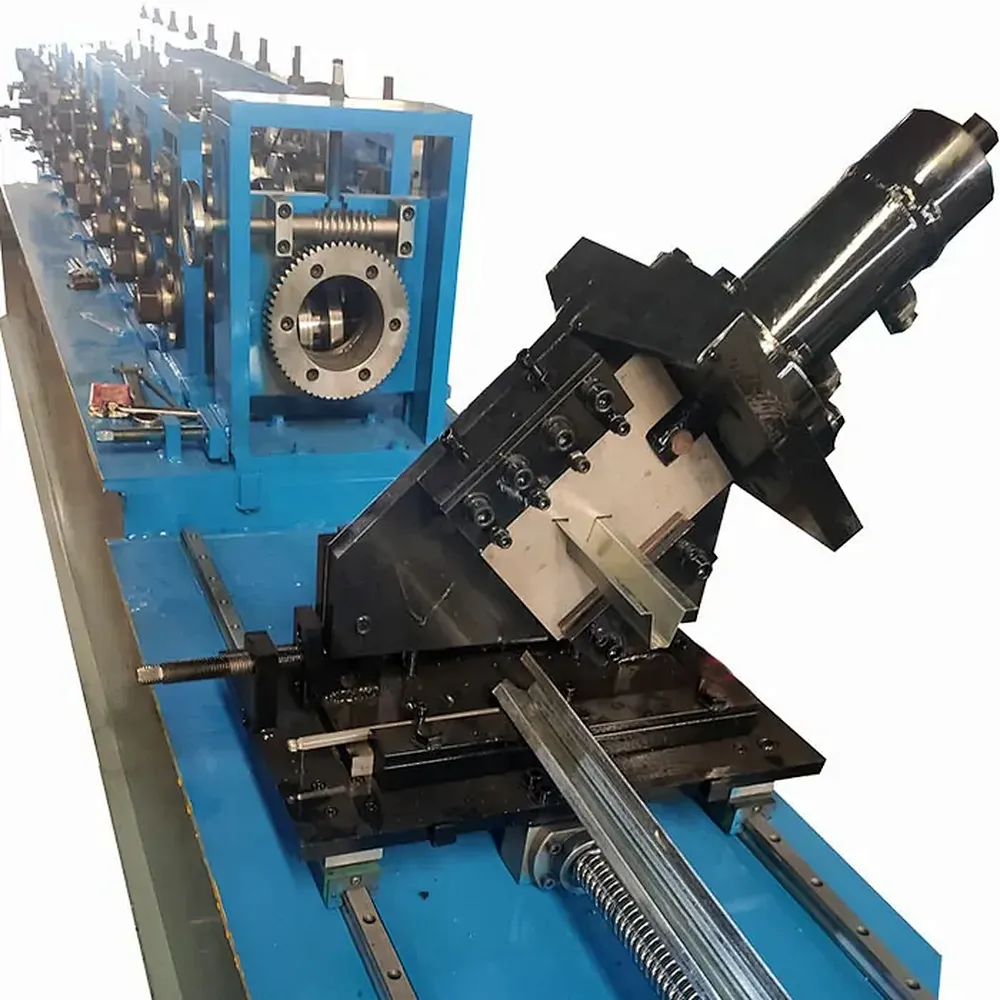

Furring Channel, also known as Hat Channel, is a corrosion-resistant framing component used to level uneven surfaces prior to applying drywall sheets to walls and ceilings. The Furring channel forming machine or Omega profile roll forming machine presented above uses the latest technology during the assembly. These machines can be known as furring light gauge profile roll forming machines.
h
Furring channel drawing
Furring Channel, also known as Hat Channel, is a corrosion-resistant framing component used to level uneven surfaces prior to applying drywall sheets to walls and ceilings. The Furring channel forming machine or Omega profile roll forming machine presented above uses the latest technology during the assembly. These machines can be known as furring light gauge profile roll forming machines.
h
Furring channel drawing
Furring light gauge profile roll forming machine forming process flow chart
Furring Omega profile roll forming machine specifications
| Part details | Item Name | Specification |
| Material | Raw material | Galvanized steel |
| Thickness | 0.3-0.8 mm | |
| Machine | Roller station | 10 |
| Shaft diameter | 55 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | Cr 12 | |
| Machine size | About 4.2×0.8×1 m | |
| Machine weight | About 1.5 ton | |
| Machine color | As customer' request | |
| Working speed | 30-50 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1 mm | |
| Material | Cr 12 | |
| Operate | Hydraulic cutting | |
| Power | Driving way | Chain 1 inch |
| Main power | 4 kw | |
| Pump power | 3 kw | |
| Voltage | 380v/50HZ,3P or customize as customer' request | |
| Control system | PLC brand | Delta made in Twaiwan |
| Screen | Touchable screen | |
| Language | Chinese and English or add language as customer need | |
| Decoiler | Operation | Manual |
| Weight capicatity | 3 ton | |
| Price | Free as gift | |
| Receiving table | Operation | Manual |
| Length | 3 m | |
| Price | Free as gift |
