Metal framing Stud and Track Channel CU profiles drywall and ceiling profiles steel partition for wall and ceiling forming machine
#drywallSteelCU
Gypsum boards are considered among the most economic and ideal ways for wall partitioning. Easy to install, time and money saver, gypsum boards can be used as a backing for wall treatments such as wallpaper, fabric and etc. In order to install these boards, STUD AND RUNNERS partition profiles are essential
Quantity



Product Description
Technical Parameters

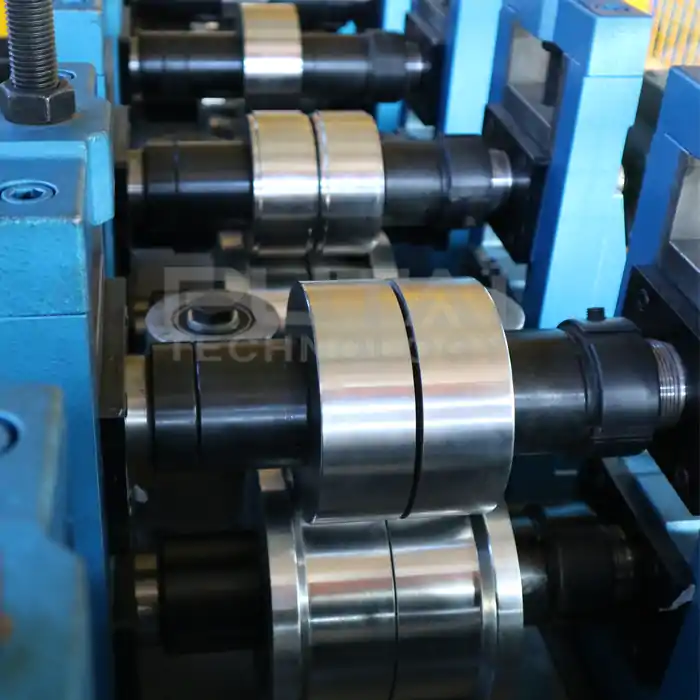

Rollers
Stand: 12 Rows
Roller’s shaft diameter:50mm
Roller adjustment range:20mm, up10mm, down 10mm
Roller material: Cr12
Shaft
50mm, the upper shaft’s length is 430mm and the lower shaft’s length is 500mm
Steel structure
35mm steel wall plate welded frame, 25mm thickness for desk plate
Total motor power
16.8kw
Main motor power
7.5kw (K77 series 7.5KW)
cutting system
Cutting blade material: Cr12,heat treatment HRC58-60
Cut-off type
servo tracking cutting
Length tolerance
+/-2mm
PLC
Delta PLC (Taiwan Brand)
Encoder
Omron brand
Raw material thickness
0.3~0.6mm
Productivity
0-30m/min
Voltage
380v50hz3p(or as your requirement)
 Drive type
Gear transmission drive, K77 series motor reducer integrated
Gear
Outer diameter Ф168, thickness 35, 24 teeth, modulus 6 (material 40Cr)
Material
galvanized steel sheet, aluminum sheet
Metal framing Stud and Track Channel CU profiles drywall and ceiling profiles steel partition for wall and ceiling forming machine
Machine introduction
1.the main parts:
    1) roll forming machine
    2)molding press
    3)cutting machine
    4)PLC computer control
    5)hydraulic system.
2. The machine is stable,no noise,no shake.
3. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable
4. cutting machine is characterized by stable driving, easy operation.
5. hydraulic system use hydraulic pump, long operating life,no noise.
6. material: galvanized,colored steel or aluminum coil
7. We can make and design the kinds of roll forming machine according to customer's request.

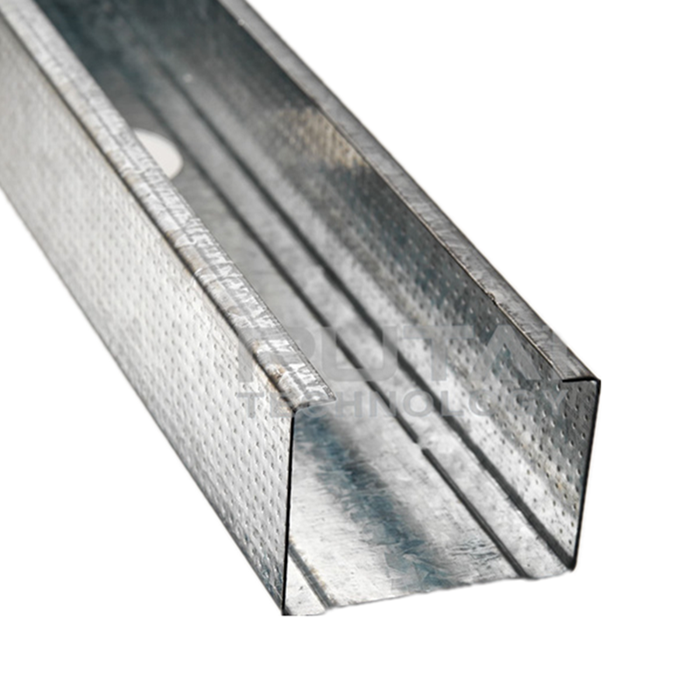

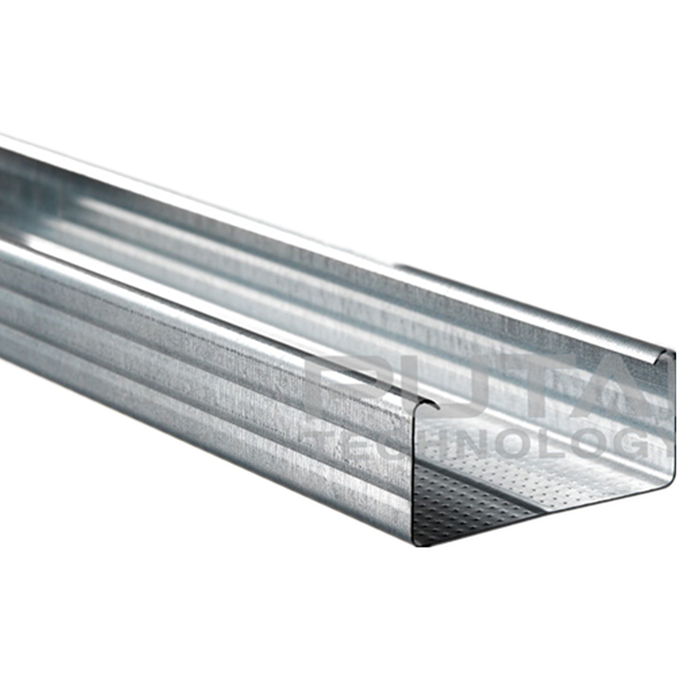

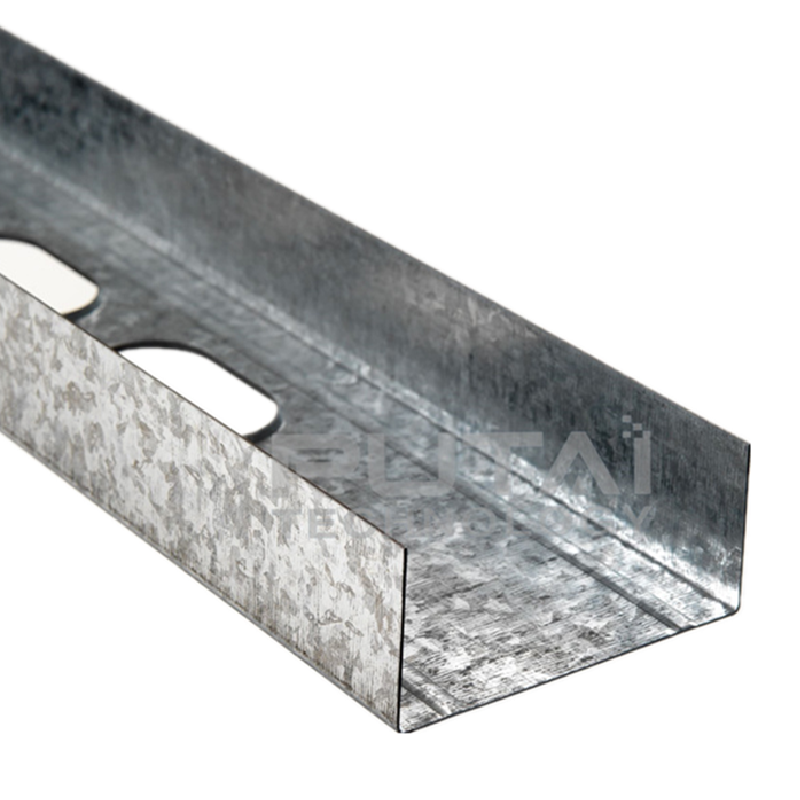

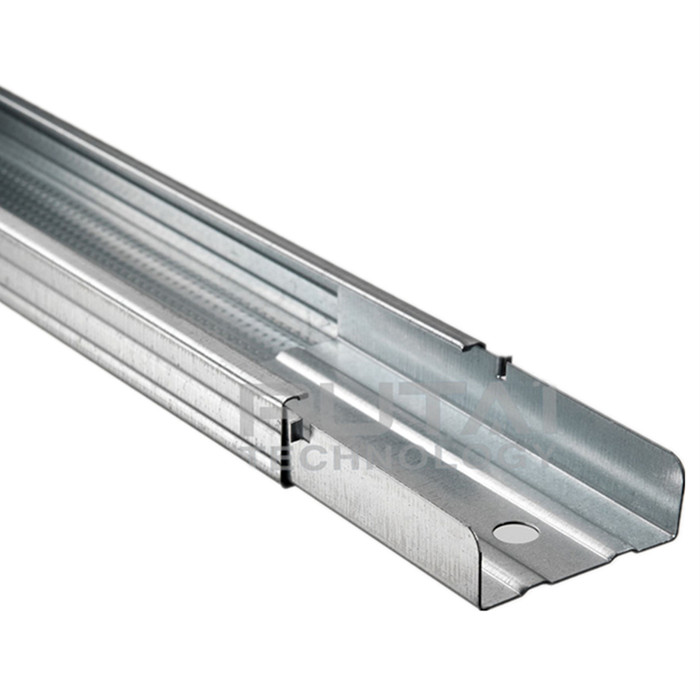

PROFILES





Machine Details/Specifications

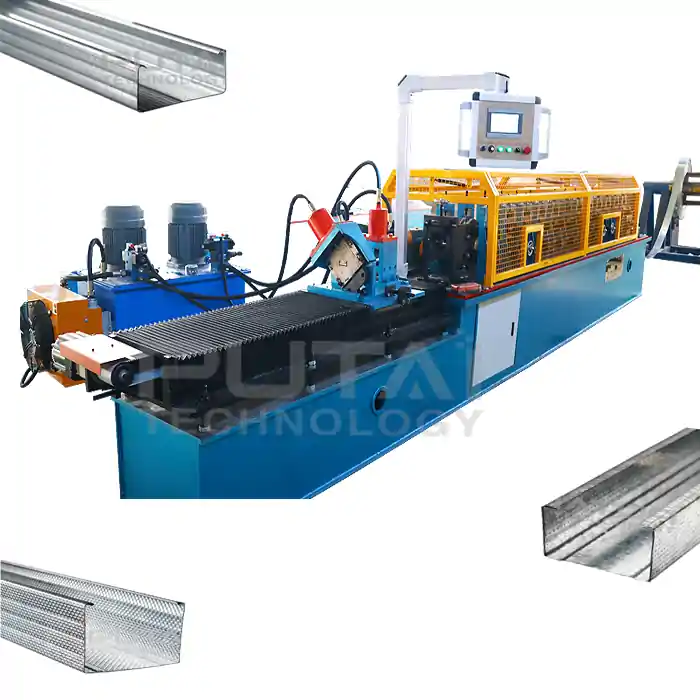

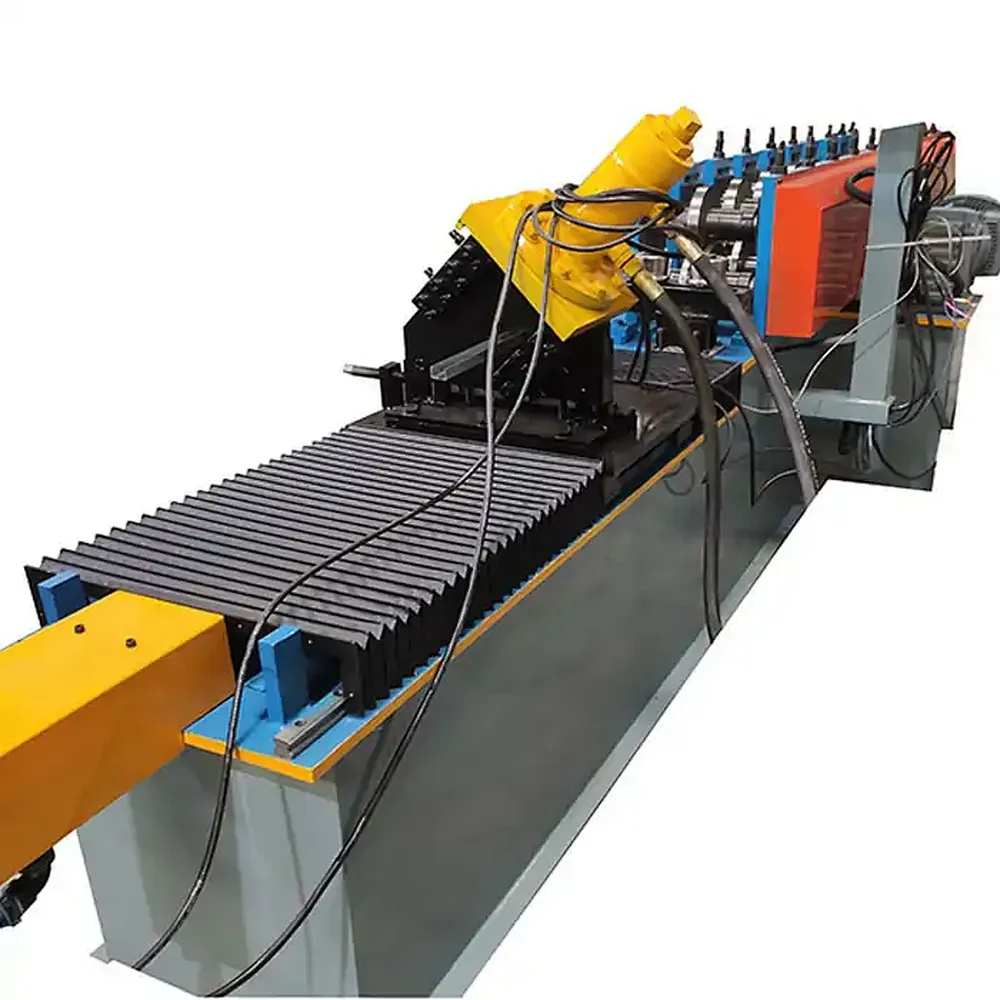

 CU Channel Stud and Track profiles Forming Machine
 Decoiler: Max Capacity: 5000kgs; Coil Inner diameter: 400-600mm; Automatic and Manual Control (with brake)
Leveling device:  Using a level to ensure the material's level and straightness with adjustable width
  Main forming System:  Width, Height, and thickness: According to the profile drawing. Material: GI sheet coil or PPGI.
  Motor power: 5.5 kw forming system
Roller Material: Cr12
Roller Surface: Heat treatment HRC 58-60
Main shaft diameter: 60 mm  #45 steel, heat treatment modulation
Forming station: 12 stations(May vary depending on the client's requirements)
Transmission type: Chain and Gear transmission
Electrical system: Control system: HMI & PLC control panel; Power 380v 50hz (as per local requirement)
Run-out-table: Frame:A3; Qantity: 1pc

Machinery Exhibition during a visit to our installations
