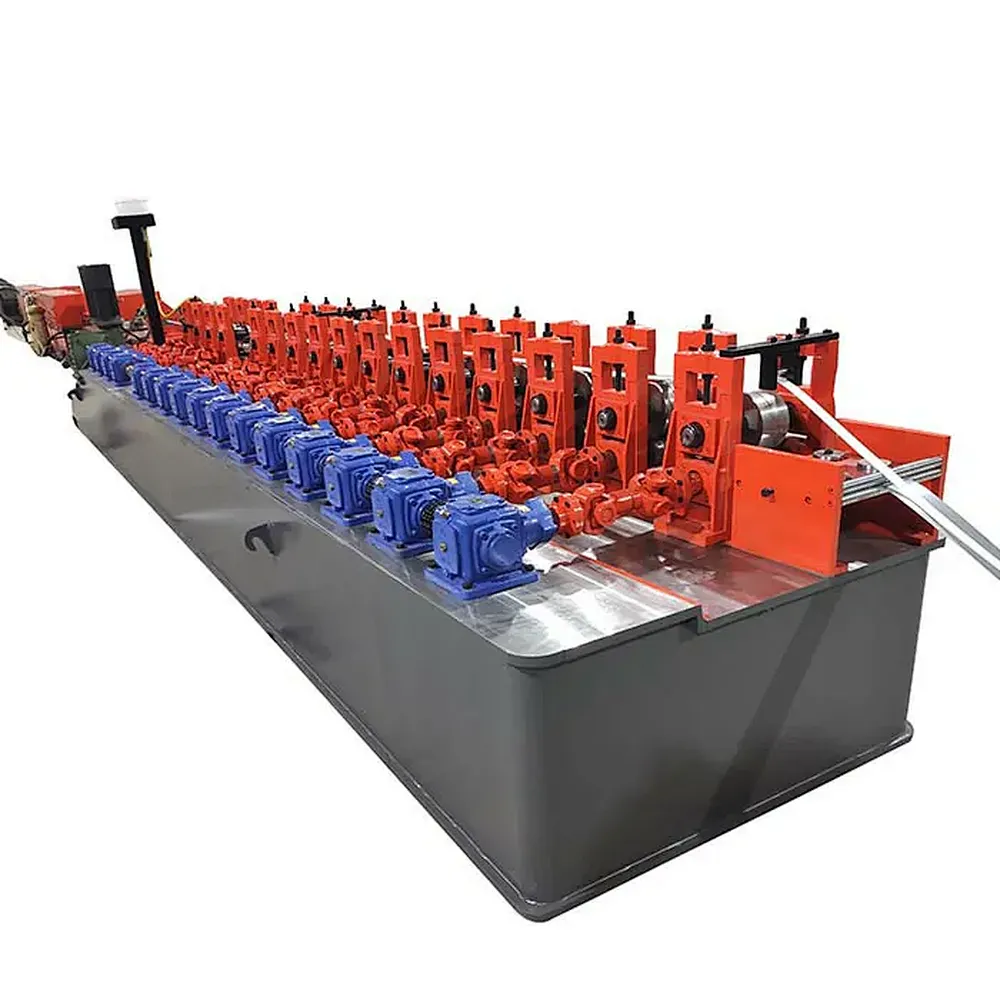

PVC tee bar Tgrid for drop ceiling roll forming machine
#Tee_bar
A T-bar is an extremely useful metal bar in the shape of a T and is an excellent choice for structural and load-bearing applications. They are generally considered stronger than angle bears due to the integrity of the T shape. The upper portion of the T, which is known as the flange, bears the weight and resists compressive stresses whereas the bottom portion, which is known as the web, is resistant to shear stresses and supports the flange, preventing bending or buckling. The most common use of T-Bars outside of major construction projects is as support for a dropped ceiling.
Quantity

The three most common materials used to construct T-Bars are aluminum, stainless steel, and brass. Material is important when considering what the T-Bar is going to be used for.

Aluminum is the lightest, cheapest, and easiest to work with of the three. Stainless steel is strong but more brittle than aluminum and while it is very corrosion-resistant, stainless is a misnomer as it will eventually begin to discolor and rust. It is also non-magnetic, easy to weld, and has poor electrical conductivity if any of those are concerns. Brass has a unique look with its golden color and has a better strength-to-weight ratio than stainless steel. Brass has a high melting point, is highly conductive, and is not recommended for welding though it can be easily soldered.






Tee bar PVC T-grid  for drop ceiling roll forming machine specifications
Rollers Station
16 Rows (Or according to the client's profile drawing )
Transmission
The main drive uses a chain drive
Middle Plate
Thickness 25mm, grinding six-sided, high-precision boring from processing
Shaft
Material:45# steel Machine tool processing heat treatment, then grinding machine finished
Feeding Positioning
Material for the Cr12, heat treatment hardness HRC58-62, synchronous positioning, and flexible adjustment at both ends.
Forming Machine Size
5600X820X1300(mm)
Cutting System
Servo Tracking Cutting System
Punching Mold
Material: SKD11, heat treatment hardness: HRC56-58
Raw Material Thickness
GI width and thickness: 78mm*0.25~0.28mm
PPGI width and thickness:  28.6mm*0.18~0.25mm
Productivity
0-30m/min
Voltage
380v50hz3p (or as your requirement)
