steel profile suspended ceiling profile

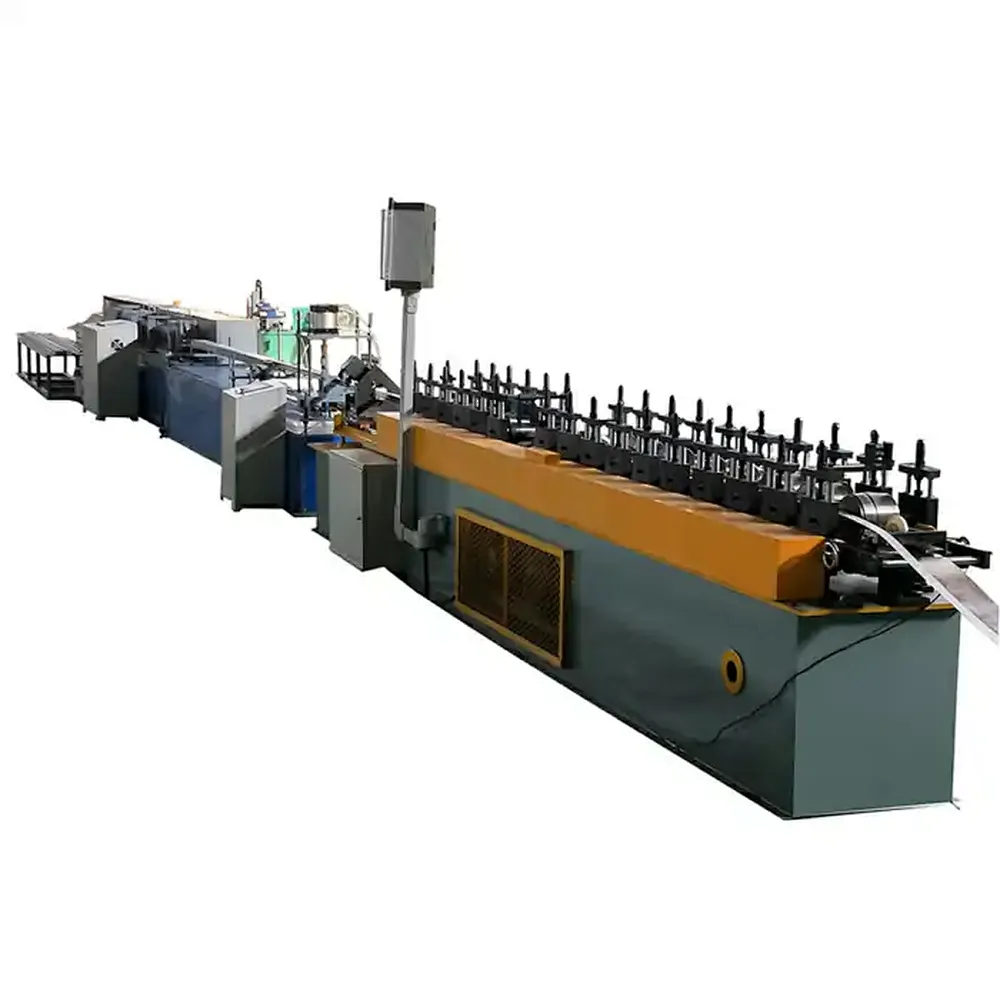

Suspended ceiling Main T Cross Tee Ceiling System profile forming Machinery
#TeeGrid
The main runner often referred to as the main bar or primary channel, is a typically 3.4m length of T shape grid that forms the primary support for the suspended ceiling. The Main runner is suspended from the top fix by a combination of suspension wire and some specialist fixings. The main runners are typically spaced at 1200mm centers and all points in one direction along with the room, this can naturally be the length or the width depending on numerous factors. Ensuring the suspended ceiling is designed in the correct way is critical. Our machinery produces the best possible channel in the market, With the latest update on its components, the machinery we provide will certainly meet your need
Quantity





Technical Parameters

Roll forming Parts
Roller Stations
16 Rows
Transmission
Gear or Chain(depending on customer requirements)
Middle Plate
Thickness 25mm, grinding six-sided, high-precision boring from processing
Shaft
Material:45# steel Machine tool processing heat treatment, then grinding machine finished
Feeding Positioning
Material for the Cr12, heat treatment hardness HRC58-62, synchronous positioning, flexible adjustment at both ends
Forming Machine Size
5600X820X1300(mm)
Cutting System
Servo tracking cutting system
Punching Mold
Material: SKD11, heat treatment hardness: HRC56-58
Raw Material Thickness
 GI width and thickness: 78mm*0.25~0.28mm
PPGI width and thickness： 28.6mm*0.18~0.25mm
Productivity
0-30m/min
Voltage
380v50hz3p(or as customer requirement)

video

1. the main parts:
1) roll forming machine
2)molding press
3)cutting machine
4)PLC computer control
5)hydraulic system.
2. The machine is stable, with no noise, no shake.
3. Controlling by computer, PLC display, the operation is easy, running is steady and reliable, endurable
4. cutting machine is characterized by stable driving, easy operation.
5. hydraulic system uses a hydraulic pump, long operating life, no noise.
6. material: galvanized, colored steel or aluminum coil
7. We can make and design the kinds of roll forming machines according to the customer's request.
8. Professional: rich experience in product and export process! 9. Low price: Save your money from every part! a.Low labor cost b.Convenient transportation; c. Complete supporting industries 10.PLC: Ensuring high accuracy and easy to operate! 11.Full Automatic: Just input the length of the sheets and numbers of the piece you need, then the machine automatically, produces the product you need!
