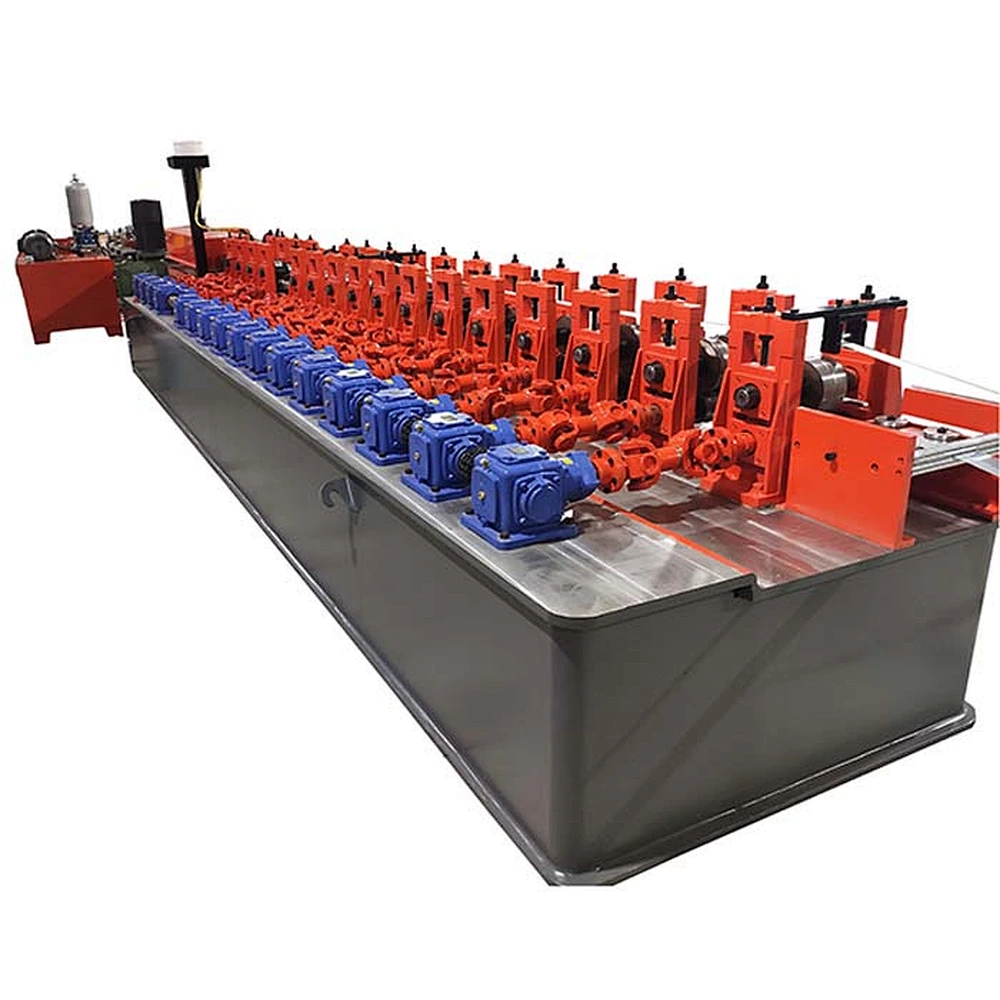

Suspended grid machinery ceiling tee grid machines production line
24*32/24*38/24*26
Putai Technology is a professional steel profile roll forming machine's manufacturer and factory. we supply t grid machinery,ceiling tee grid machines,t grid production line,t grid production line.
Quantity
Main Ceiling T Grid Machinery
Suspended grid machinery ceiling tee grid machines production lines details are as below:
| Decoiler | Weight | 150kg |
| Steel coil ID | 450~550mm | |
| Steel coil OD | 1500mm | |
| Roll Forming Machine | Rollers | 14~18 Rows |
| Material: Cr12 | ||
| Inner diameter: 40mm; Outer diameter: 90mm | ||
| Heat treatment hardness:HRC58-62 | ||
| Transmission | The main drive uses worm gear transmission | |
| Middle Plate | Thickness is 25mm | |
| Hydraulic System | Power | 7.5KW |
| Cutting System | Servo Tracking System | 2.2KW |
| Punching | Material | SKD11 |
The features of Suspended grid machinery ceiling tee grid machines production line
Three roll forming machines are included in full line as below:
the main T grid bar roll forming machine
cross Tee grid bar roll forming machine
and wall(L)angle roll forming machine
Suspended grid machinery ceiling tee grid machines production line are built according to Client’ specifications, because of this, we can make the steel ceiling T-grid machine’s perfect performance and long life time.
Meet clients’ diversified requirements
Good quality Suspended grid machinery ceiling tee grid machines production line with reasonable price, therefore, do not worry anything!
Responsible QC workder check every process, in clusition, we will try our bset to serve our client.
Lower labor cost, convenient transportation and fully automatic save your money!
We not only develop PLC by ourselves to ensure high accuracy, but also make celing t bar machine’s punching molds by ourselves’ factory.So we promise the after-sale service.
In addition to this, It is also Easy to operate ceiling T-grid machinery. Above all, It will be your best choise to choose us!
Specification for t grid production line
| Decoiler | Weight | 150kg |
| Steel coil ID | 450~550mm | |
| Steel coil OD | 1500mm | |
| Roll Forming Machine | Rollers | 14~18 Rows |
| Material: Cr12 | ||
| Inner diameter: 40mm; Outer diameter: 90mm | ||
| Heat treatment hardness:HRC58-62 | ||
| Transmission | The main drive uses worm gear transmission | |
| Middle Plate | Thickness is 25mm | |
| Hydraulic System | Power | 7.5KW |
| Cutting System | Servo Tracking System | 2.2KW |
| Punching | Material | SKD11 |
This part is cross t grid machine.
Suspended grid machinery ceiling tee grid machines production line are built according to Client’ specifications, using top brand component
Meeting clients’ diversified requirements on machines.
High quality machine with reasonable price.
Every process will be checked by responsible QC which insures every product’s quality.
Low labor cost, convenient transportation and fully automatic save your money from every part! Self-developed PLC Ensures high accuracy and easy to operate!
