T-bar suspension Grid System Tee Grid roll forming machine
#TeeGrid
Tianjin Putai Technology (Chenglang Equipment) is a Professional Cold roll forming machine manufacturer specializing in light steel profile roll forming machinery, T bar roll forming Machinery, Cold-Bend Forming equipment, and C U channel baler.
Our factory owns the core technology of our Machinery. We combine the Mold designing and researching and Electric PLC Automation and offer the service separately to most profile forming factories.
Our factory owns the core technology of our Machinery. We combine the Mold designing and researching and Electric PLC Automation and offer the service separately to most profile forming factories.
Quantity

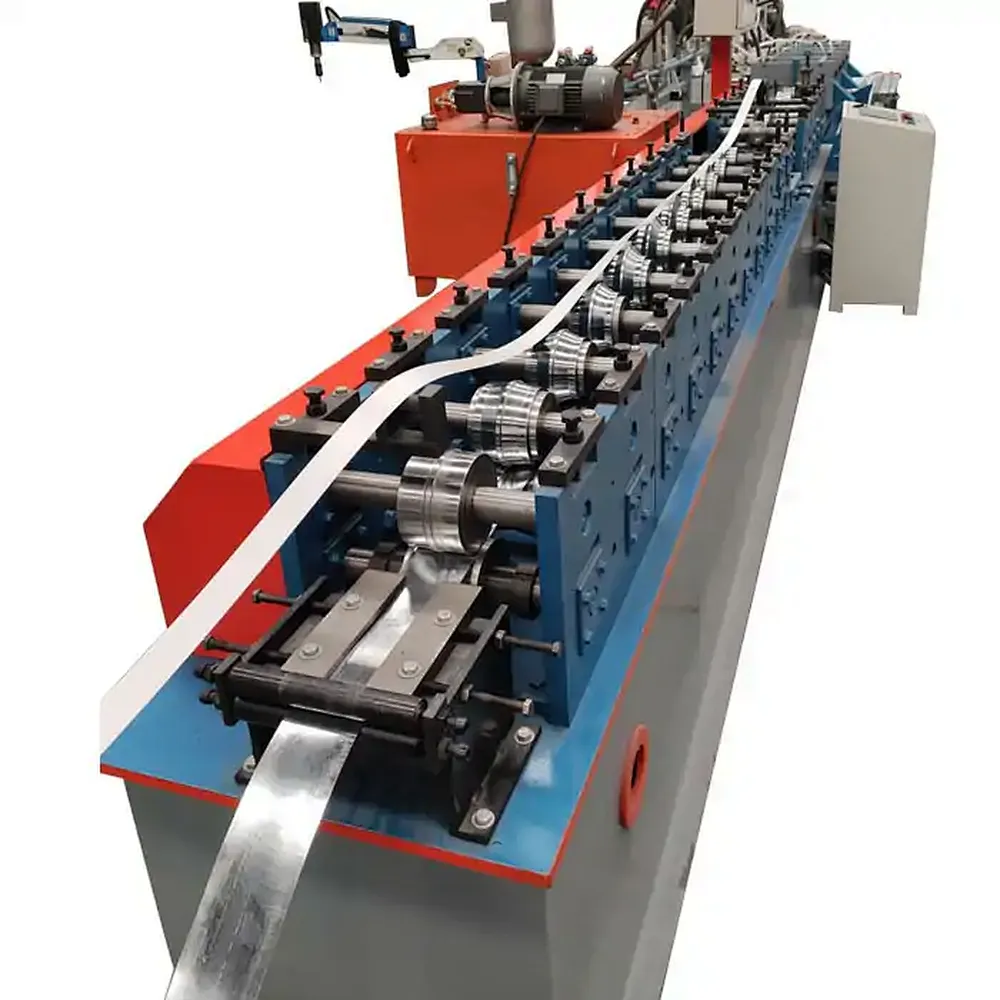

Ceiling T grid system machine
T-bar suspension Grid System Tee Grid roll forming machinery:
| Decoiler | Weight | 150kg |
| Steel coil ID | 450~550mm | |
| Steel coil OD | 1500mm | |
| Roll Forming Machine | Rollers | 14~18 Rows |
| Material: Cr12 | ||
| Inner diameter: 40mm; Outer diameter: 90mm | ||
| Heat treatment hardness: HRC58-62 | ||
| Transmission | The main drive uses worm gear transmission | |
| Middle Plate | Thickness is 25mm | |
| Hydraulic System | Power | 7.5KW |
| Cutting System | Servo Tracking System | 2.2KW |
| Punching | Material | SKD11 |
The features of False Ceiling T Bar Machinery
Three False Ceiling T Bar Machinery are included in full line as below:
the main T grid bar roll forming machine
cross Tee grid bar roll forming machine
and wall(L)angle roll forming machine
False Ceiling T Bar Machinery are built according to Client’s specifications, because of this, we can make the Ceiling T grid system machine’s perfect performance and long lifetime.
Meet clients' diversified requirements
Ceiling T grid system machine with reasonable price, therefore, do not worry anything!
Responsible QC worker check every process, in conclusion, we will try our bset to serve our client.
Lower labor cost, convenient transportation and fully automatic save your money!
We not only develop PLC by ourselves to ensure high accuracy, but also make suspended ceiling t bar equipment ’s punching molds by ourselvesT grid Machine factory.So we promise the after-sale service.
In addition to this, It is also Easy to operate ceiling T-grid machinery. Above all, It will be your best choise to choose T grid Machine factory!
Cross suspended ceiling t bar equipment
suspended ceiling t bar equipment are built according to Client’ specifications, using top brand component
Meeting clients’ diversified requirements on machines.
Ceiling T grid system machine with reasonable price.
Every process will be checked by responsible QC which insures every product’s quality.
Low labor cost, convenient transportation and fully automatic save your money from every part! Self-developed PLC Ensures high accuracy and easy to operate!
Specification for Ceiling T grid system machine
| Decoiler | Weight | 150kg |
| Steel coil ID | 450~550mm | |
| Steel coil OD | 1500mm | |
| Roll Forming Machine | Rollers | 14~18 Rows |
| Material: Cr12 | ||
| Inner diameter: 40mm; Outer diameter: 90mm | ||
| Heat treatment hardness:HRC58-62 | ||
| Transmission | The main drive uses worm gear transmission | |
| Middle Plate | Thickness is 25mm | |
| Hydraulic System | Power | 7.5KW |
| Cutting System | Servo Tracking System | 2.2KW |
| Punching | Material | SKD11 |
Applicaion
Ceiling T grid system machine's Punching Mold Department
Our Machine Suppliers
Shipping Package & Container
High speed full automatic suspended Ceiling T grid tee bar machinery production line's Punching Mold
