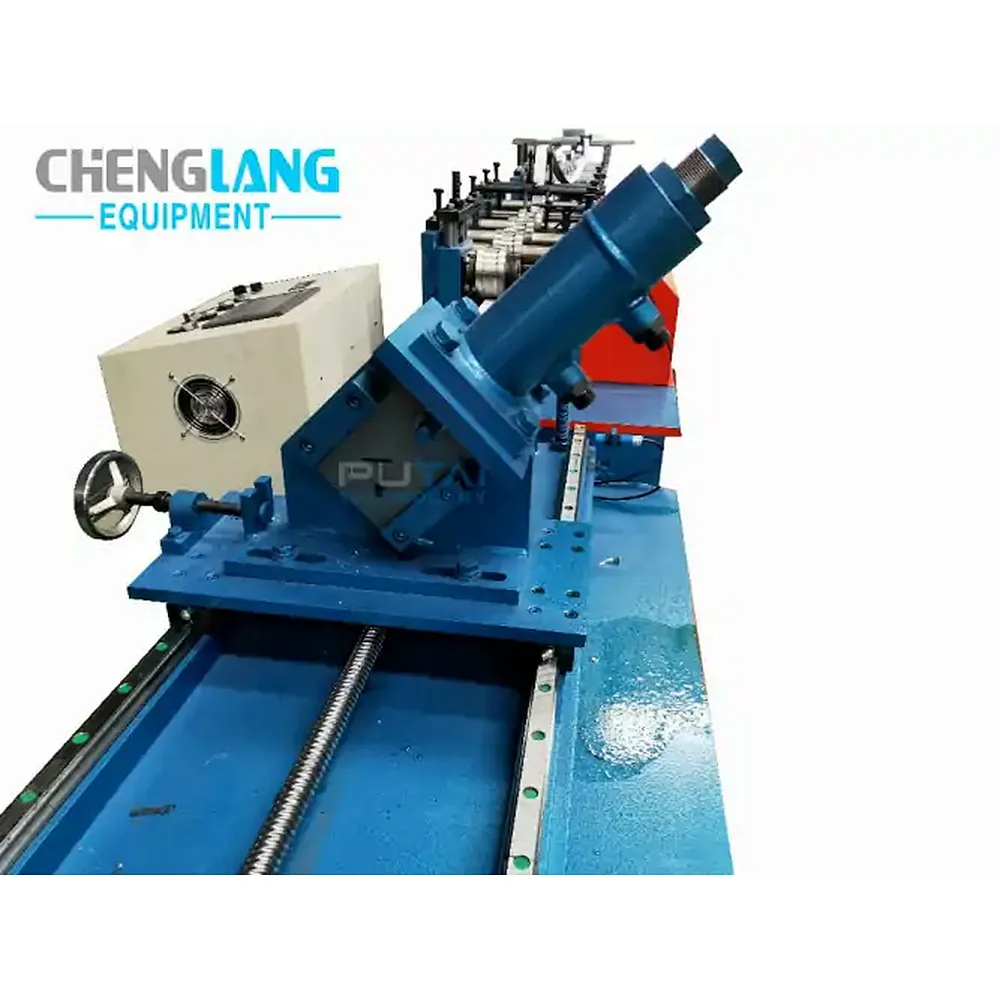

T24 Flat System Ceiling Grid Roll Forming Machine
#T24
Tianjin Putai Technology Co., Ltd is a professional Ceiling T-bar rolling line Ceiling T-grid roll former Ceiling T-bar roll forming line Ceiling T-grid roll forming machine's manufacturer in China supplies t grid roll forming machine, steel profile roll forming machines.
Quantity
T24 Flat System Ceiling Grid Roll Forming Machine
Full automatic forming machine details are as below:
| Decoiler | Weight | 150kg |
| Steel coil ID | 450~550mm | |
| Steel coil OD | 1500mm | |
| Roll Forming Machine | Rollers | 14~18 Rows |
| Material: Cr12 | ||
| Inner diameter: 40mm; Outer diameter: 90mm | ||
| Heat treatment hardness:HRC58-62℃ | ||
| Transmission | The main drive uses worm gear transmission | |
| Middle Plate | Thickness is 25mm | |
| Hydraulic System | Power | 7.5KW |
| Cutting System | Servo Tracking System | 2.2KW |
| Punching | Material | SKD11 |
The features of CROSS TEE MACHINE
Three False Ceiling T Bar Machinery are included in full line as below:the main T grid bar roll forming machine
cross Tee grid bar roll forming machine
and wall(L)angle roll forming machine
False Ceiling T Bar Machinery are built according to Client's specifications, because of this, we can make the Ceiling T grid system machine’s perfect performance and long lifetime.
Meet clients' diversified requirements
Ceiling T grid system machine with reasonable price, therefore, do not worry anything!
Responsible QC workers check every process, in conclusion, we will try our best to serve our clients.
Lower labour cost, convenient transportation and fully automatic save your money!
We not only develop PLC by ourselves to ensure high accuracy but also make suspended ceiling t bar equipment’s punching moulds by ourselves T grid Machine factory. So we promise the after-sale service.
In addition to this, It is also Easy to operate ceiling T-grid machinery. Above all, It will be your best choice to choose the T grid Machine factory!
Cross suspended ceiling t bar equipment
suspended ceiling t bar equipment is built according to Client’s specifications, using top brand component
Meeting clients’ diversified requirements on machines.
Ceiling T grid system machine with reasonable price.
Every process will be checked by responsible QC which insures every product’s quality.
Low labour cost, convenient transportation and fully automatic save your money from every part! Self-developed PLC Ensures high accuracy and is easy to operate!
Specification for Ceiling T grid system machine
| Decoiler | Weight | 150kg |
| Steel coil ID | 450~550mm | |
| Steel coil OD | 1500mm | |
| Roll Forming Machine | Rollers | 14~18 Rows |
| Material: Cr12 | ||
| Inner diameter: 40mm; Outer diameter: 90mm | ||
| Heat treatment hardness:HRC58-62℃ | ||
| Transmission | The main drive uses worm gear transmission | |
| Middle Plate | Thickness is 25mm | |
| Hydraulic System | Power | 7.5KW |
| Cutting System | Servo Tracking System | 2.2KW |
| Punching | Material | SKD11 |
Application
Our Machine Suppliers
Shipping Package & Container
High speed full automatic suspended Ceiling T grid tee bar machinery production line's Punching Mold
