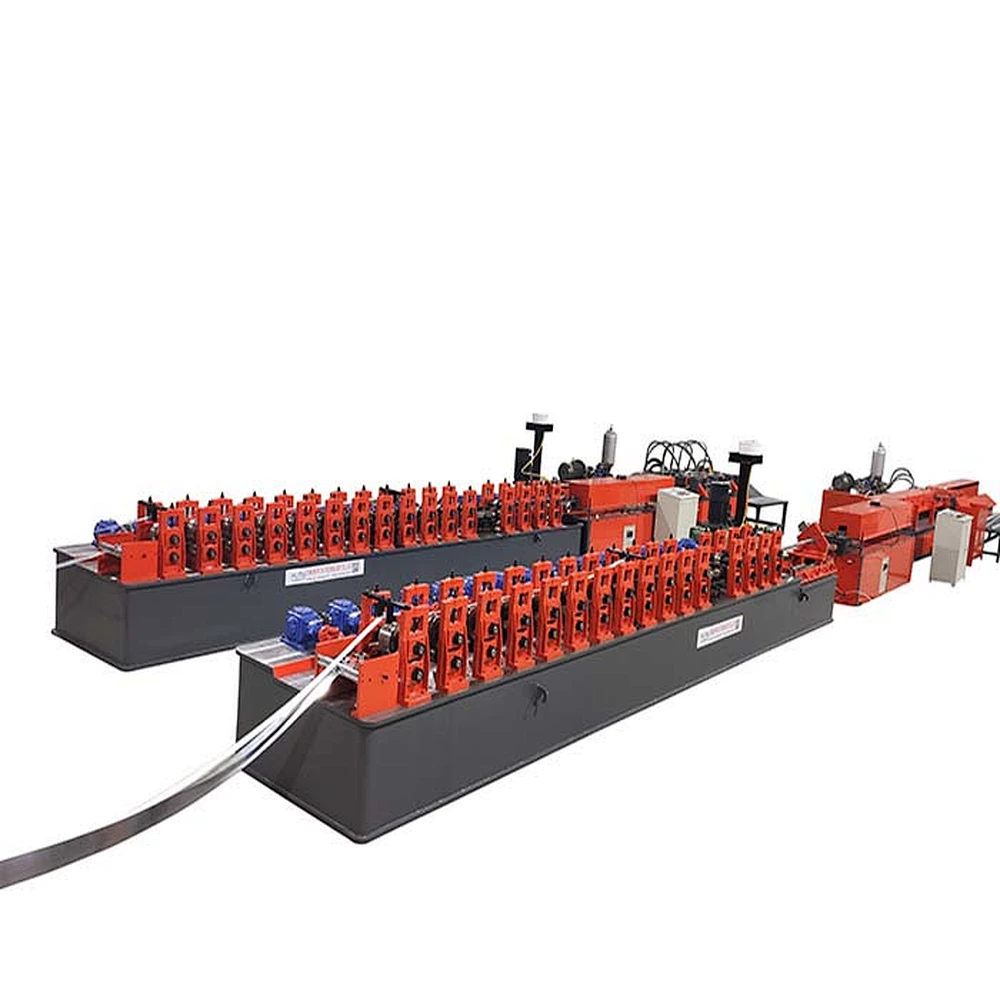

Tee Grid Cross T FUT grid ceiling steel framing roll forming machine
#TeeGrid
A T grid or T-bar is an extremely useful metal bar in the shape of a T and is an excellent choice for structural and load-bearing applications. They are generally considered stronger than angle bars due to the integrity of the T shape.
Quantity
Tee Grid Cross T FUT grid ceiling steel framing roll forming machine
Rollers Station
16 Rows
Transmission
The main drive uses chain drive
Middle Plate
Thickness 25mm, grinding six-sided, high-precision boring from processing
Shaft
Material:45# steel Machine tool processing heat treatment, then grinding machine finished
Feeding Positioning
Material for the Cr12, heat treatment hardness HRC58-62, synchronous positioning, flexible adjustment at both ends.
Forming Machine Size
5600X820X1300(mm)
Cutting System
Servo Tracking Cutting System
Punching Mold
Material:SKD11,heat treatment hardness:HRC56-58
Raw Material Thickness
GI width and thickness :  78mm*0.25~0.28mm
PPGI width and thickness:  28.6mm*0.18~0.25mm
Productivity
0-30m/min
Voltage
380v50hz3p (or as your requirement)
Product Information
Tee Grid Cross T FUT grid ceiling steel framing roll forming machine
1.the main parts:
1) roll forming machine
2)molding press
3)cutting machine
4)PLC computer control
5)hydraulic system.
2. The machine is stable,no noise,no shake.
3. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable
4. cutting machine is characterized by stable driving, easy operation.
5. hydraulic system use hydraulic pump, long operating life,no noise.
6. material: galvanized,colored steel or aluminum coil
7. We can make and design the kinds of roll forming machine according to customer's request.
8.Professional: rich experience in product and export process! 9.Low price:Save your money from every part! a.Low labor cost b.Convenient transportation; c. Complete supporting industries 10.PLC: Ensuring high accuracy and easy to operate! 11.Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine automatically,produce the product you need!
